IoTsmart XIAO Module: Intelligent Versatility for the loTextra Series

Empower your projects with the IoTsmart XIAO, the ultimate bridge between the most popular compact microcontrollers and the high-performance  loTextr series mezzanines. Specifically designed to accommodate Seeed Studio XIAO and Adafruit QT Py modules, this platform transforms any standard I/O module into a powerful, intelligent system.

IoTsmart XIAO is a core component of our modular ecosystem (learn more on our Philosophy page). Engineered for seamless compatibility with the  loTextra series, this module features deep native integration with the IoTflow platform, allowing you to build and deploy custom Node-RED nodes with ease.

Compatible Mezzanines:

• • Digital: IoTextra Input, IoTextra Relay2, IoTextra SSR Small, IoTextra Octal2
  • Analog: IoTextra Analog
  • Combo: IoTextra Combo

Key Features & Unmatched Flexibility

• Universal Controller Support: Compatible with a wide range of MCU modules, including the Seeed Studio XIAO (ESP32-S3, ESP32-C6, RP2350, nRF52840, etc.) and Adafruit QT Py (RP2040, SAMD21, ESP32-C3, etc.). Choose your favorite ecosystem—Wi-Fi, Bluetooth, Matter, or Zigbee.
• Dedicated Data Persistence: Features an onboard EEPROM (8 Kbit) for secure storage of configuration settings and user data, accessible via I²C (addresses 0x54-0x57).


Superior Connectivity & Integration

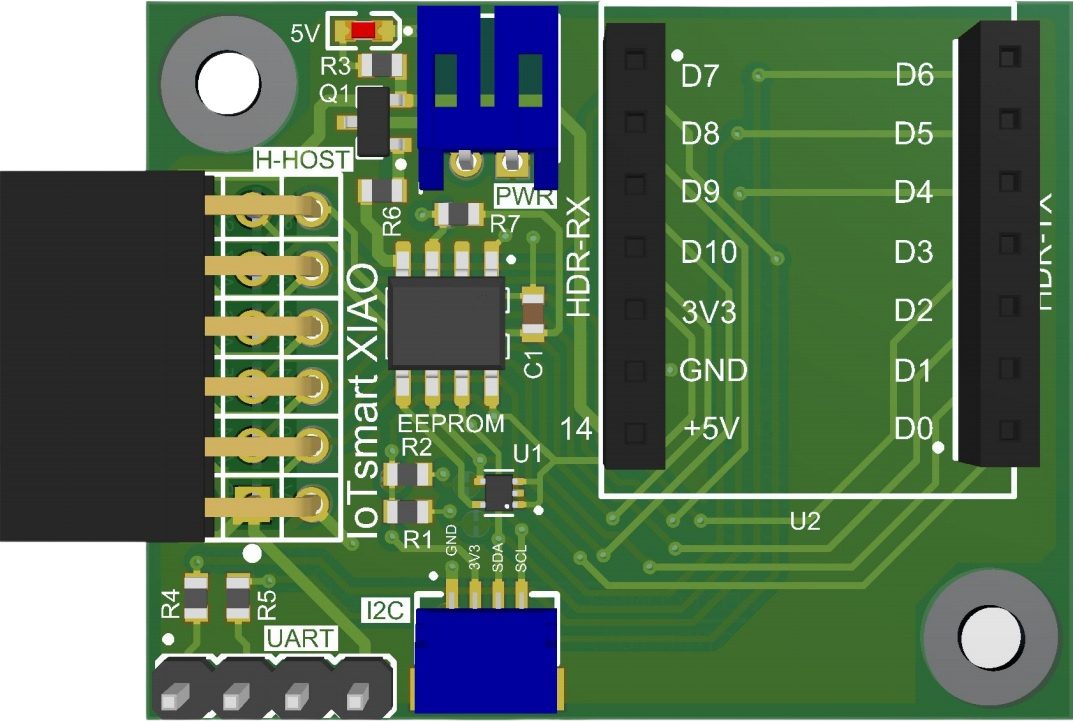

The IoTsmart XIAO offers two specific mounting orientations to fit your mechanical design requirements:

• 12-pin HOST Connector: Provides I²C communication, +5V/GND power, and GPIO access. Available in two versions:
  o    H-HOST (Horizontal): Connector mounted on the top-side for vertical mezzanine installation.
  o    V-HOST (Vertical): Connector mounted on the bottom-side for horizontal mezzanine installation.

• Qwiic® Connectivity: Effortlessly daisy-chain external sensors and peripherals via the standard Qwiic connector (I²C).
• Optional UART: Supports serial communication via a dedicated connector for expanded peripheral control.


Technical Specifications

• Input Power: +5VDC via JST connector or Tiny Adapter Board
• Onboard Indicators: Integrated Power LED and customizable jumpers for I²C pull-ups and EEPROM addressing
• Compact Footprint: Measuring just 31x40 mm, it fits perfectly into space-constrained enclosures.


Common Applications:

• Industrial Automation: Field devices and PLCs.
• Smart Home Systems: Lighting, HVAC, and security control.
• Transport & Logistics: Fleet monitoring and asset tracking.
• Environmental Monitoring: Remote sensor stations.
