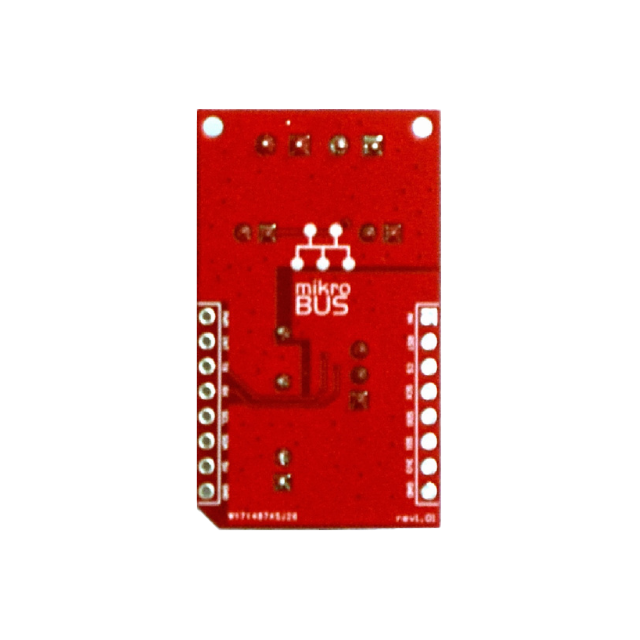

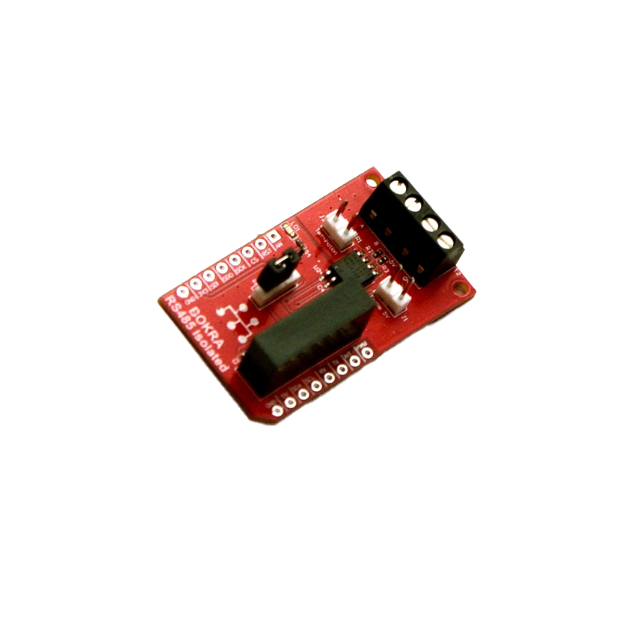

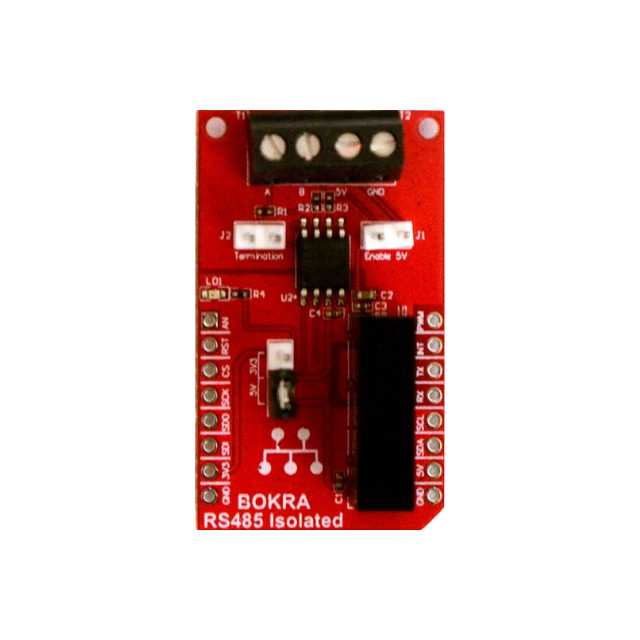

mikroBUS RS485 Isolated

The RS485 Isolated module is an isolated half-duplex RS485/422 transceiver used as an interface between the UART and the RS485/422 communication bus. The module implements half-duplex communication, has a reliable receiver input, isolation, AutoDirection (automatic direction selection, making the DE and RE signals unnecessary).

The module uses the MAX22028 chip from Maxim Integrated Products.

The maximum data transfer rate is 16Mbps.

Insulation:

• ± 10kV - ESD (HBM) at driver outputs / receiver inputs
• Withstands 3.5kVRMS Isolation Voltage for 60 Seconds
• Withstands 630VPEAK Maximum Repetitive Peak (Isolation Voltage)
• Continuously Withstands - 445VRMS Maximum (Working-Isolation Voltage)

Power supply of the RS485 Isolated module - 5VDC or 3.3VDC. When using 5VDC input power, the module provides isolated 5VDC at the output connector (maximum current 1A, isolation 3kV).

Module size – 42,93 x 25,4 mm (mikroBUS^TM form factor, size "M").

The main areas of application of the module:

• Industrial application
• Input/Output systems
• Devices and gateways
• Motor control
• Security systems
• HVAC
