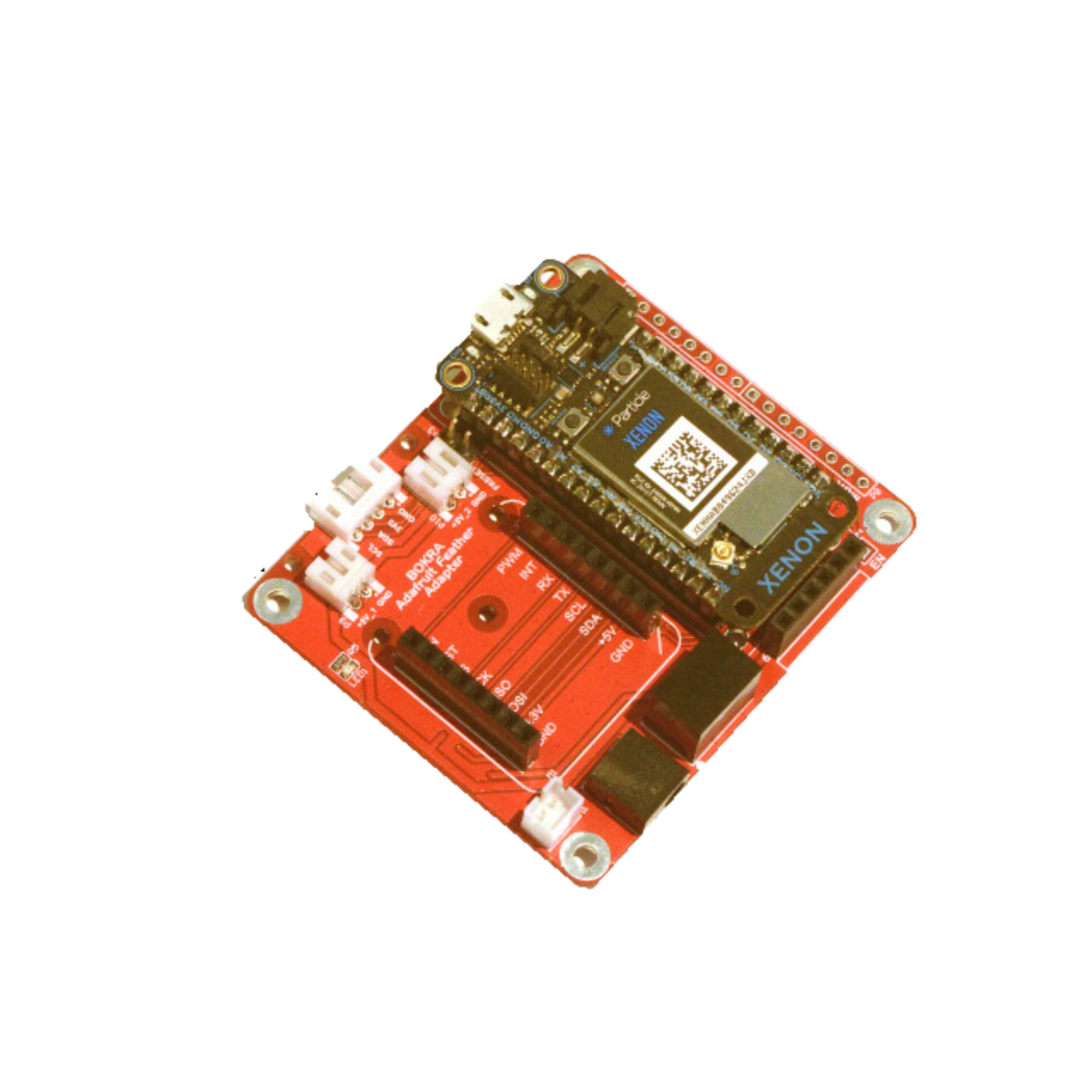

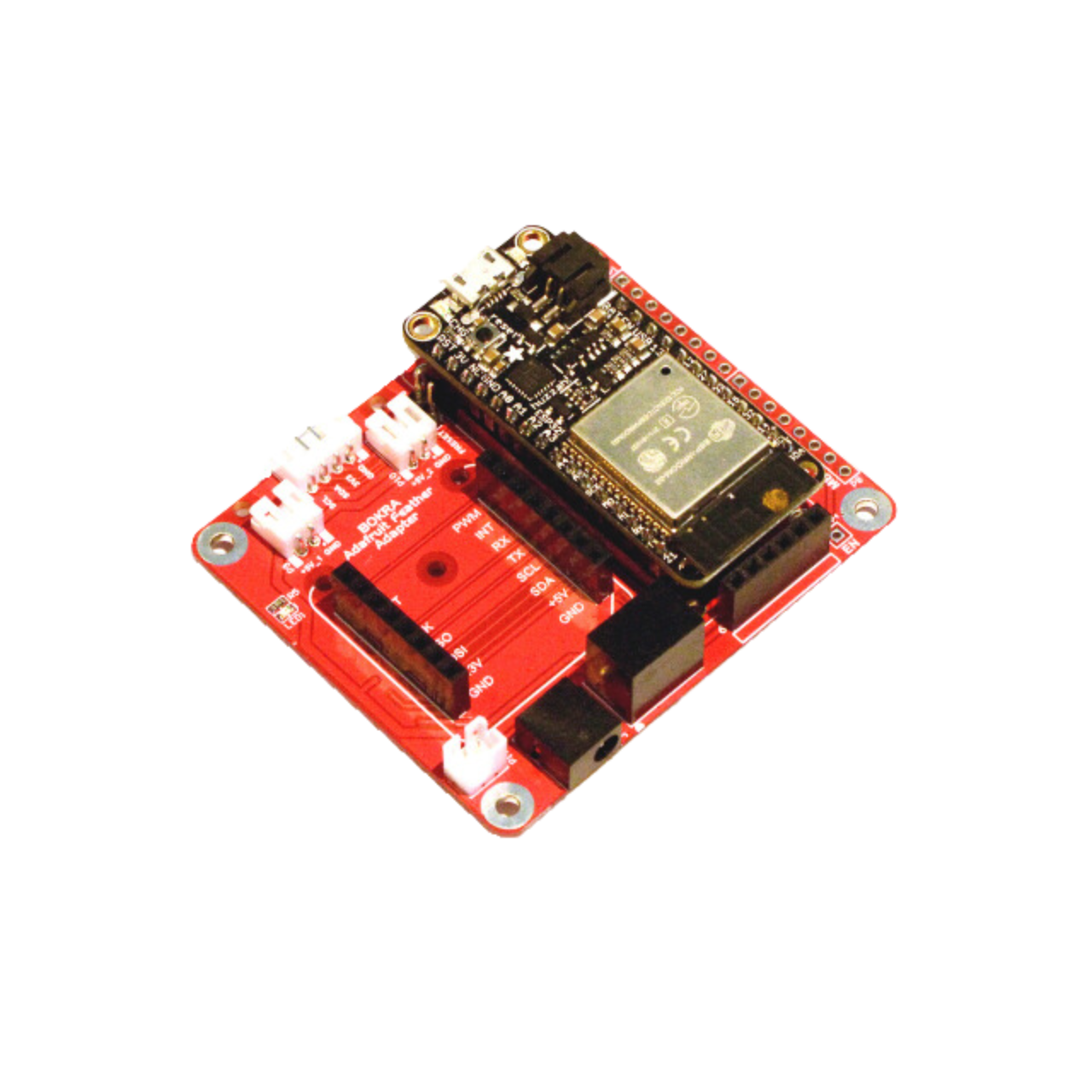

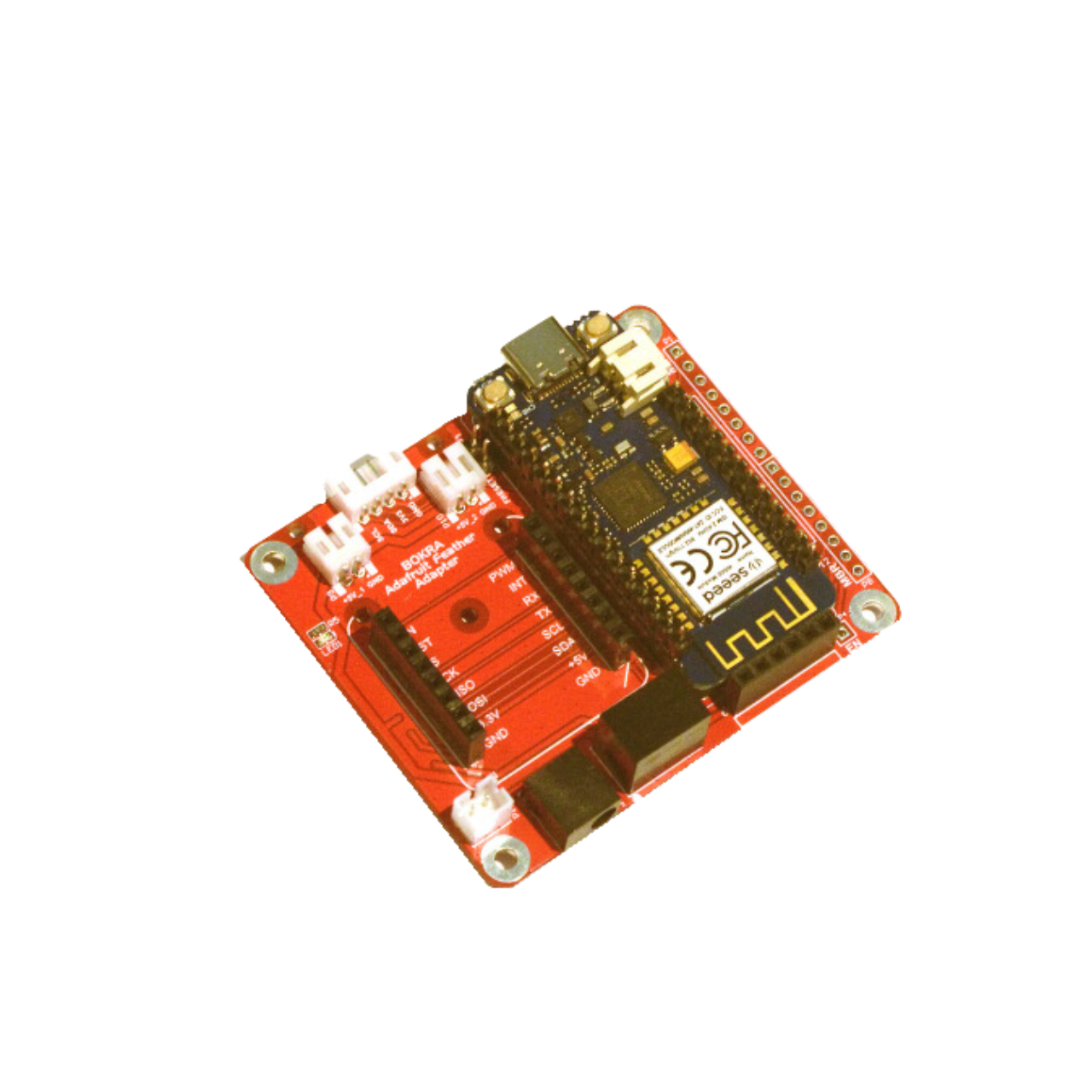

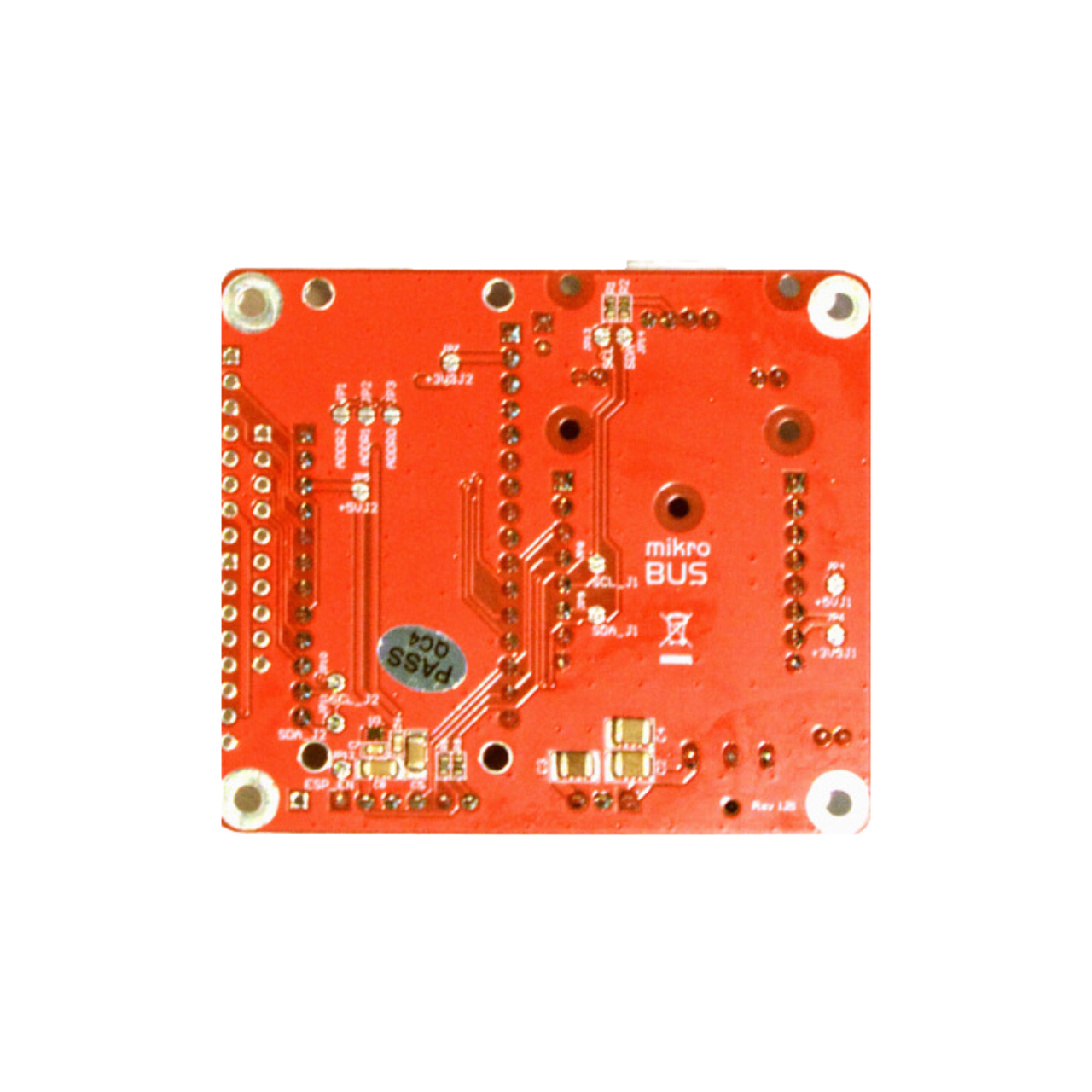

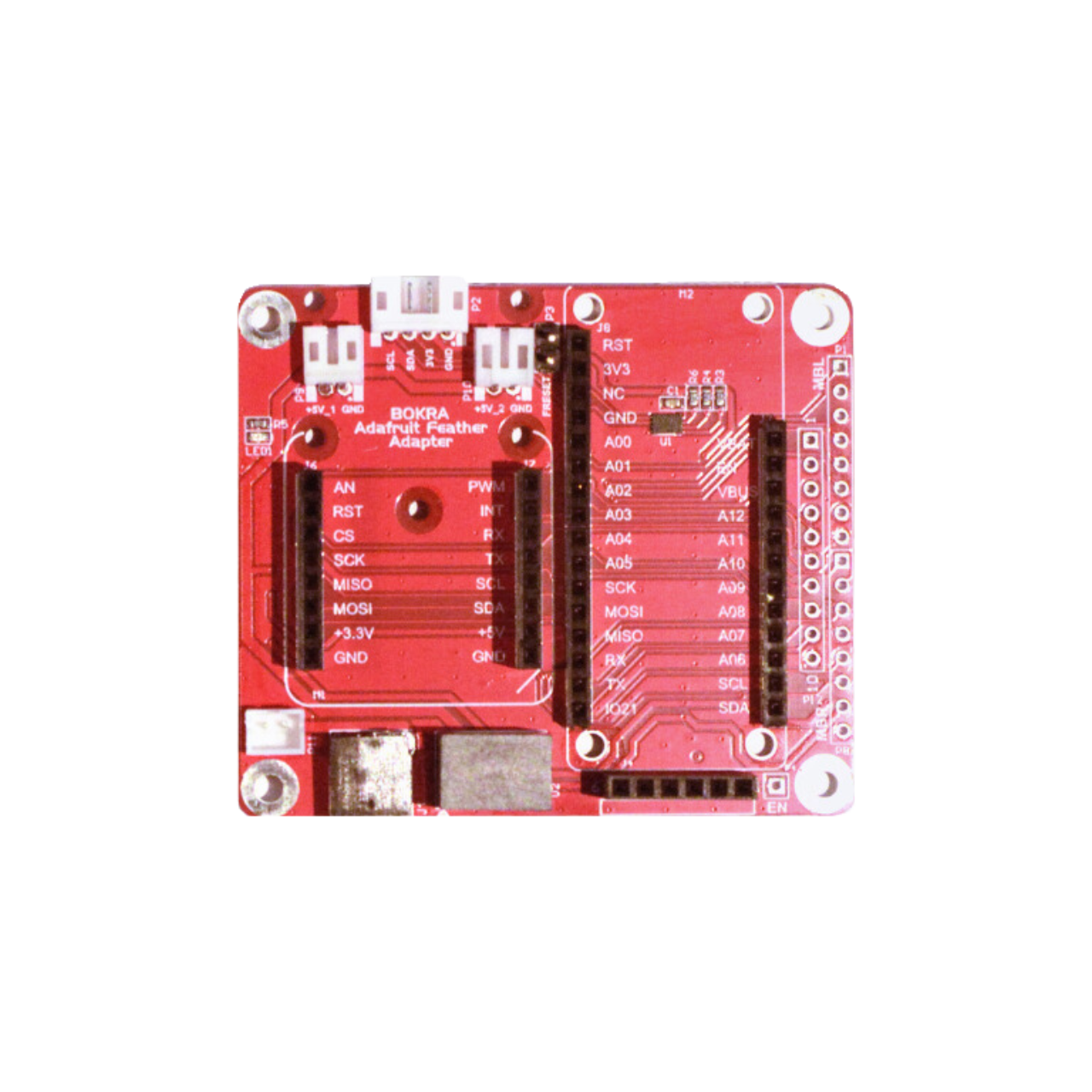

The Adafruit Feather Adapter module is designed to install Adafruit Feather (or compatible) and mikroBUSTM modules and provides a device based on this module with non-isolated 5VDC power, up to 1A. The module has slot for installing one Adafruit Feather (or compatible) module and one mikroBUSTM module of the “S” or “M” format. These two slots organize a common bus. Using the Adafruit Feather slot allows you to design devices based on mikroBUSTM modules, various Click boardsTM and Adafruit Feather compatible SoM such as:
with all software and services from specified companies.

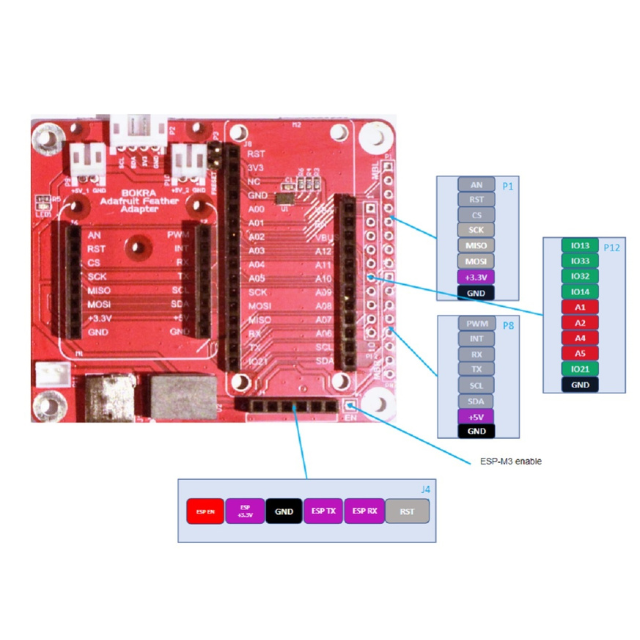

The MBL (labeled P1) and MBR (labeled P8) connectors are all mikroBUSTM bus signals. Thus, through these connectors it is easy to connect another module (or even several) with mikroBUSTM slots, increasing the number of slots on the common bus. Almost all signals not used by mikroBUS from the installed Adafruit Feather are output to the P12 connector, which makes it possible to use almost all Adafruit Feather functions without changing the programs.

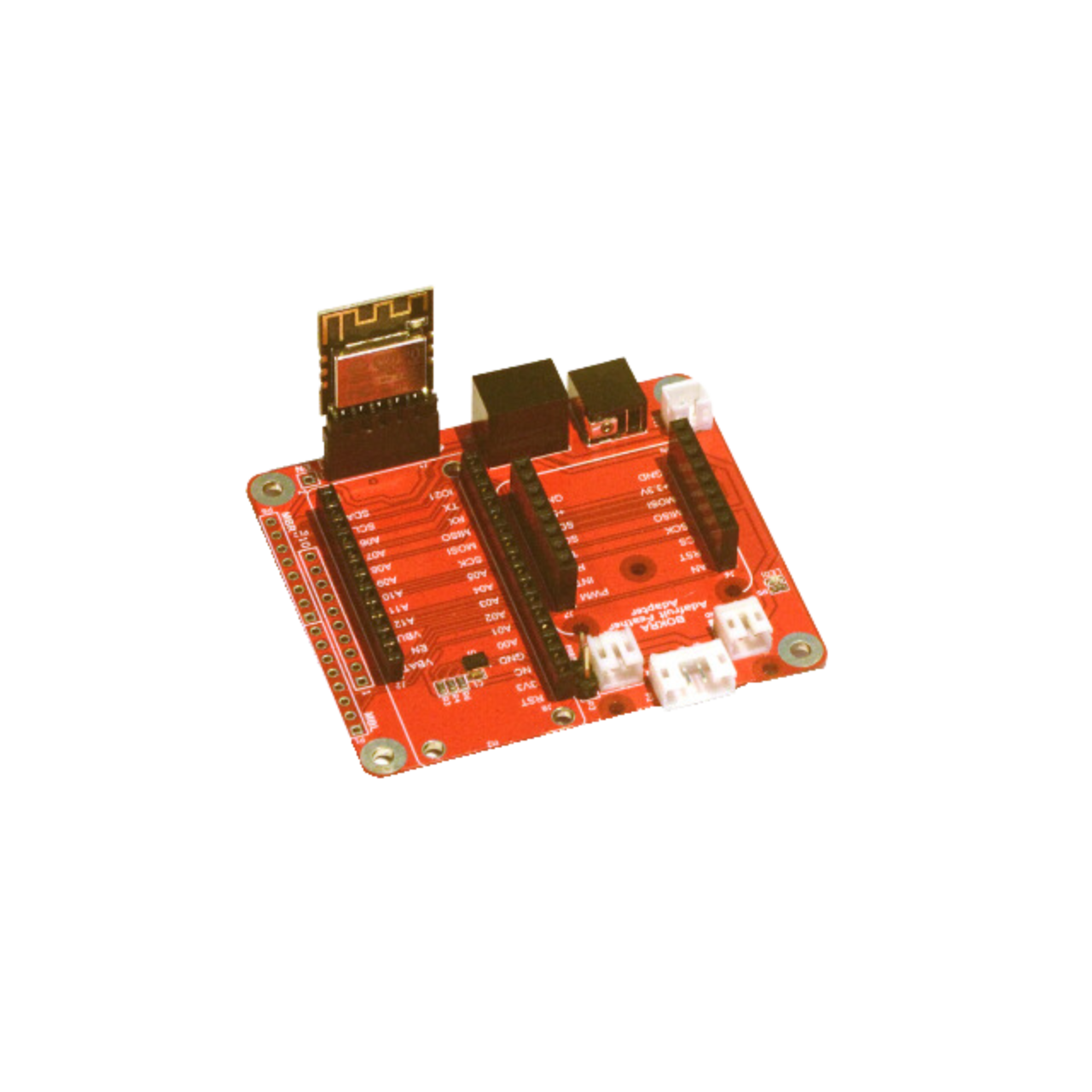

Third-party ESP-M3 modules can be installed in J4. Thus, a device based Adafruit Feather Adapter can be easily provided with Wi-Fi connection. The ESP-M3 is UART controlled from the 2nd mikroBUS slot on the module. For stability, there is a DC-DC converter that provides 3.3VDC power for the ESP-M3, independent of the power supply on the mikroBUSTM common bus.
The I2C interface is most often used in the design of devices and instruments based on this module. For this, the module has I2C connector through which you can connect external devices and sensors.
The module contains the LM75B chip - a temperature sensor connected via I2C. Temperature measurement accuracy: 2° С for the temperature range from -25° C to +100° C, 3° С for the temperature range from -55° C to +125° C.
The module power supply is non-isolated, in the range from 9VDC to 36VDC. The module converts the input power to the output, 5VDC. The maximum current is 1A. There are two connectors for distributing 5VDC to other modules and a connector for transmitting VIN input voltage to other modules.
The Adafruit Feather Adapter module size 65 x 56 mm. The format of the module corresponds to the popular format of the Raspberry Pi 3A+, which greatly simplifies its use with the Raspberry Pi.
The module comes fully assembled and ready to go. The module is part of the universal platform for IoT and IIOT, which was created to simplify users the step from design to implementation of projects and the start of production.
The main areas of application of the module:
