IoTextra Analog: Industrial-Grade 4-Channel 16-Bit Analog Input Module

$32.00
$32.00
Add to wishlist Added to wishlist
Ask us any Question
Details
  • SKU: 040401311012
  • Type: Analog IO
  • Availability: In Stock

DESCRIPTION

IoTextra Analog

4-channel differential analog input module · 16-bit ADC (ADS1115) · up to 860 SPS · I²C only

Voltage: 0–0.5V · 0–5V · 0–10V · ±0.5V · ±5V · ±10V

Current: 0–20mA · 4–20mA · ±20mA · 0–40mA

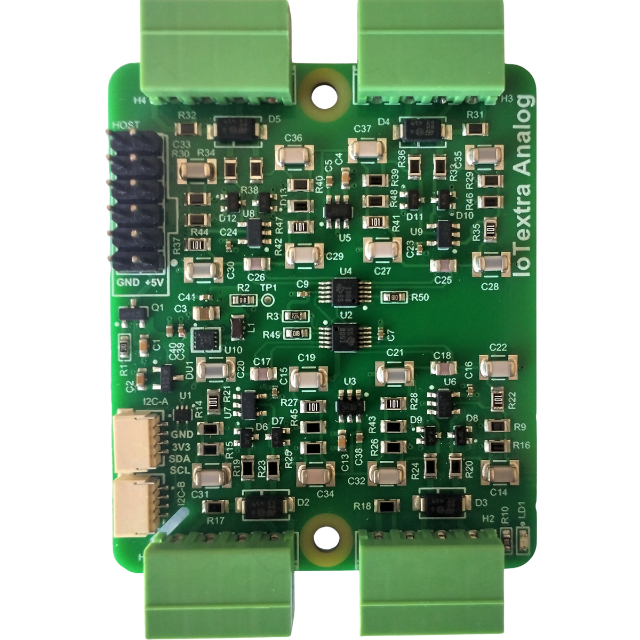

HOST and Qwiic connectors · 47×56 mm · 5 VDC supply · compatible with IoTsmart and IoTbase · Open Hardware

The Ultimate Solution for High-Precision Analog Monitoring

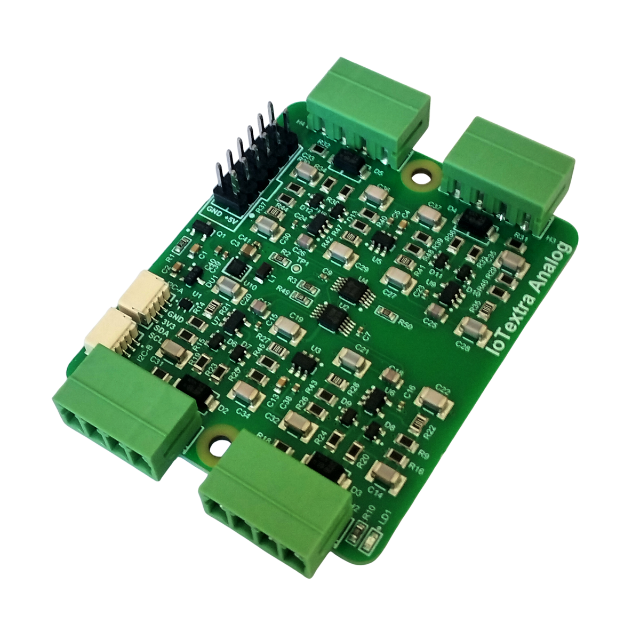

Achieve industrial precision and versatility in your embedded projects with the IoTextra Analog module. Built around the high-resolution 16-bit ADS1115 ADC from Texas Instruments, this module offers 4 truly differential input channels capable of reliably measuring a wide range of analog signals, including both voltage and current, and the essential 4-20mA industrial standard.
The IoTextra Analog is designed for mission-critical applications where every detail matters: from monitoring industrial sensors to PLC integration and building complex control systems.

Key Features and Benefits

Detailed Technical Specifications

Primary Applications

  • Industrial Automation (PLCs): Reliable monitoring of industrial sensors and current loop sensors (4-20mA).
  • Energy Monitoring: Accurate measurement of voltage and current parameters in power management systems.
  • Environmental Control: High-precision data acquisition from temperature, pressure, and humidity sensors.
  • Transportation and Automotive: Test benches, applications for transmission sensors, and infotainment systems.
  • Development and Prototyping: A powerful and flexible analog front-end for any embedded system.

Ecosystem Compatibility

The IoTextra Analog is designed for maximum modularity and can be used in three modes:

  • Standalone Use: Connects to any controller via Qwiic® or HOST connectors.

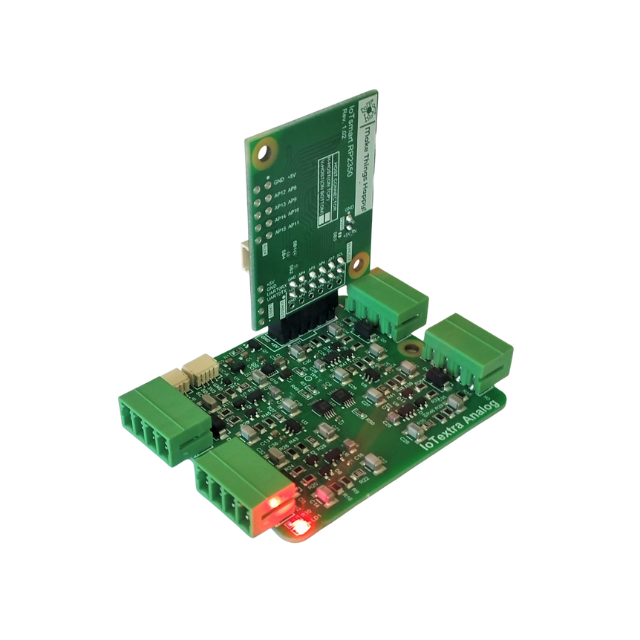

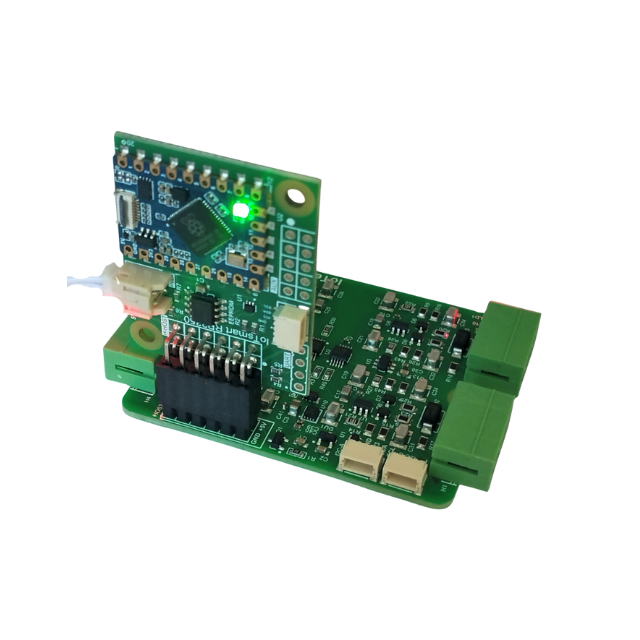

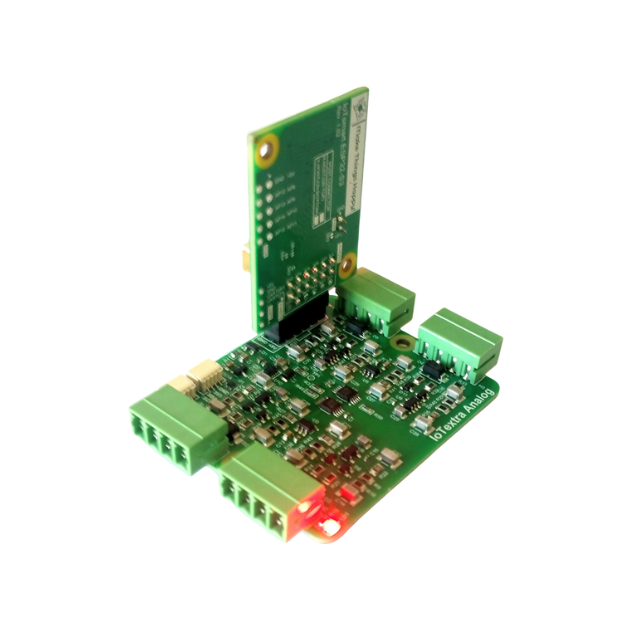

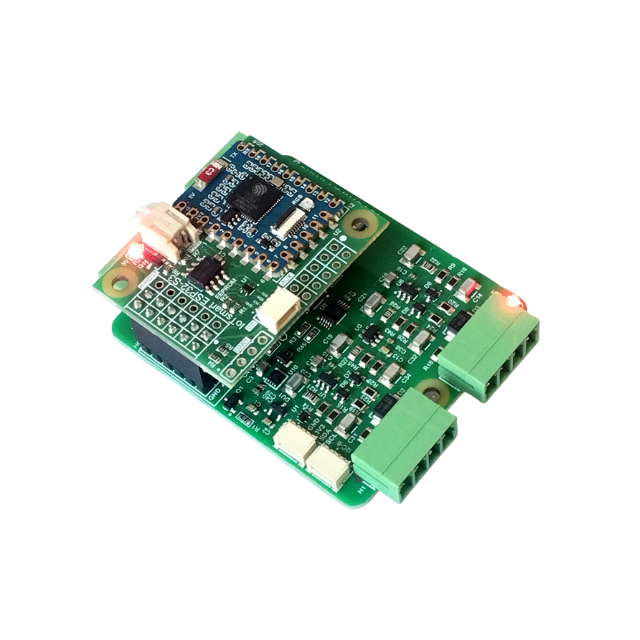

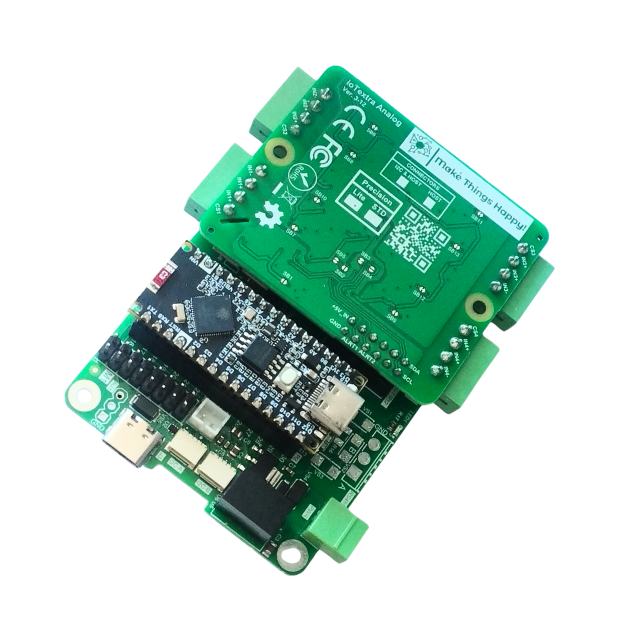

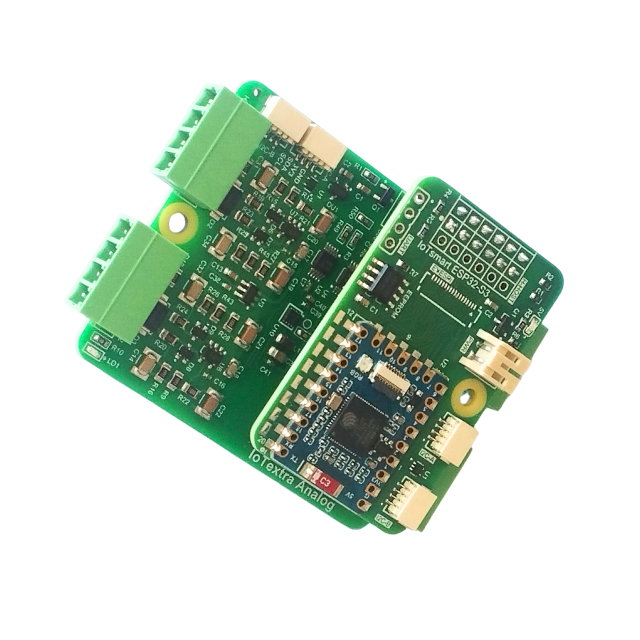

  • Smart Use: Plugs directly into an IoTsmart module (e.g., RP2350, ESP32-S3) to create an integrated controller.

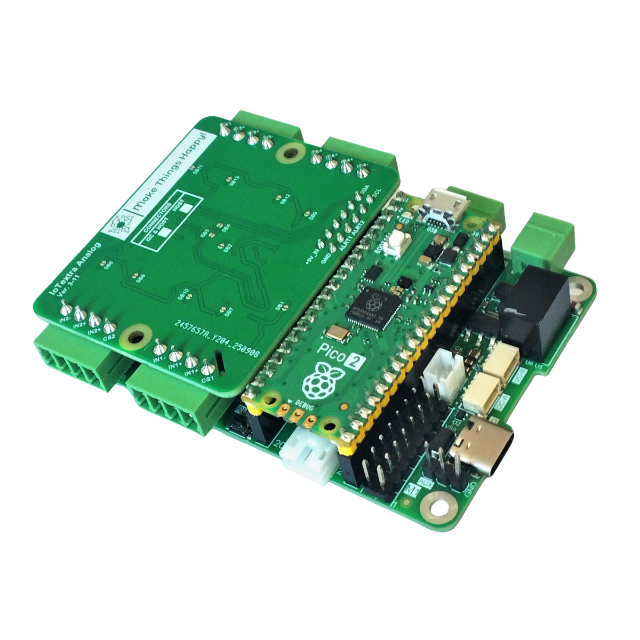

  • Mezzanine Use: Installs into an IoTbase carrier board for expanded connectivity and mechanical stability.

This module is a member of the loTextra series, which serves as a fundamental building block of our ecosystem and embodies the Make Things Happy Philosophy. It is engineered to bridge the gap between rapid prototyping and industrial-grade reliability.

Hardware Synergy: The module is compatible with both IoTsmart and IoTbase series.
