LPC824 Lite - mikroBUS Cortex M0+ SoM

The LPC824 Lite module is based on a simple and economical microcontroller LPC824M201JHI33 (further - LPC824) with ARM Cortex M0+ architecture. This microcontroller is designed for embedded systems and is a real alternative to 8-bit MCU.

Frequency – 30 MHz. MCU flash memory - 32 kB, RAM - 8 kB. The microcontroller supports up to four I²C (SMBus) interfaces, up to three UART interfaces and up to two SPI. The microcontroller contains 12-bit ADC (speed up to 1.2 Msps). Debug Interface - SWD. External connectors - mikroBUS^TM slot and I²C for I²C Qwiic^® and Grove Systems peripherals.

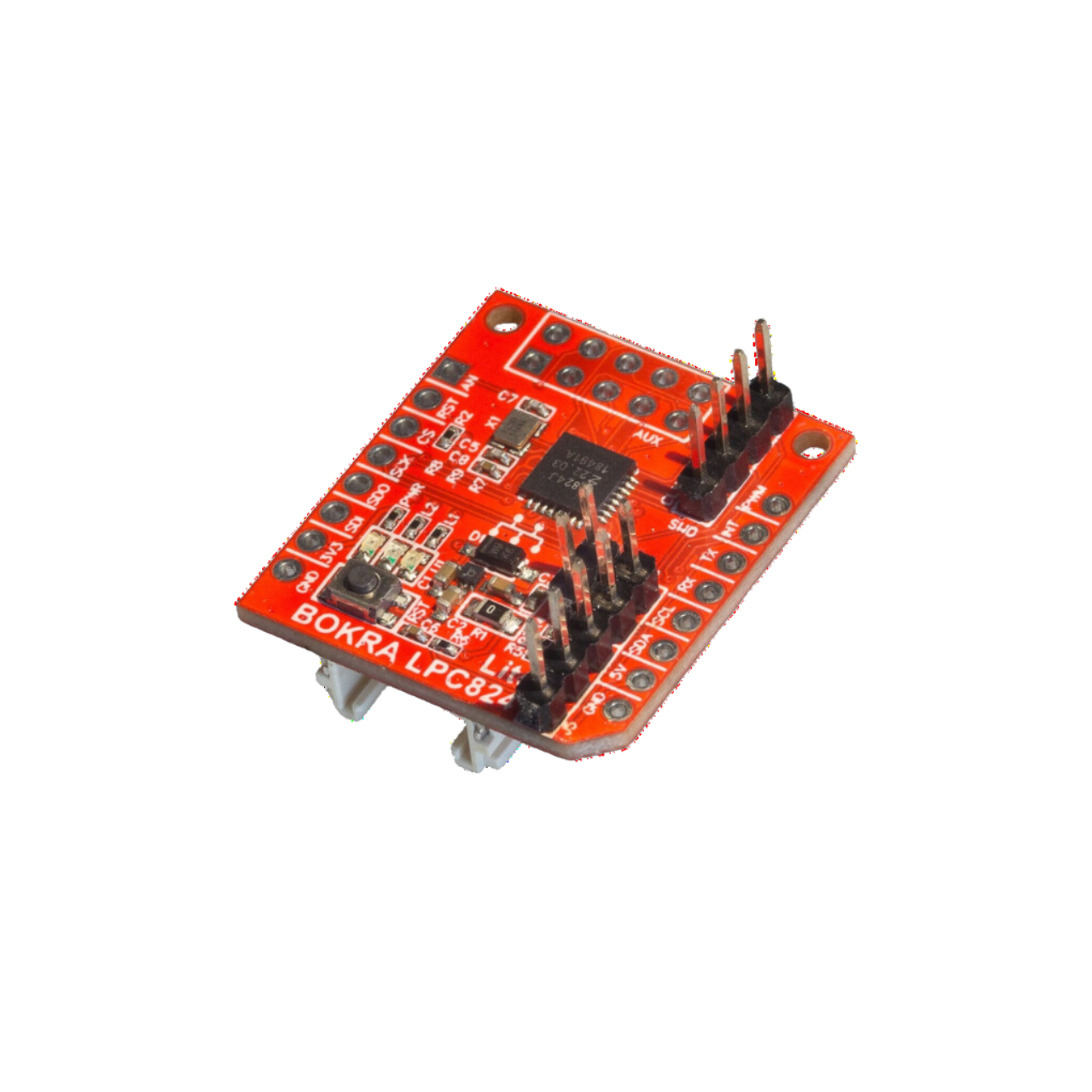

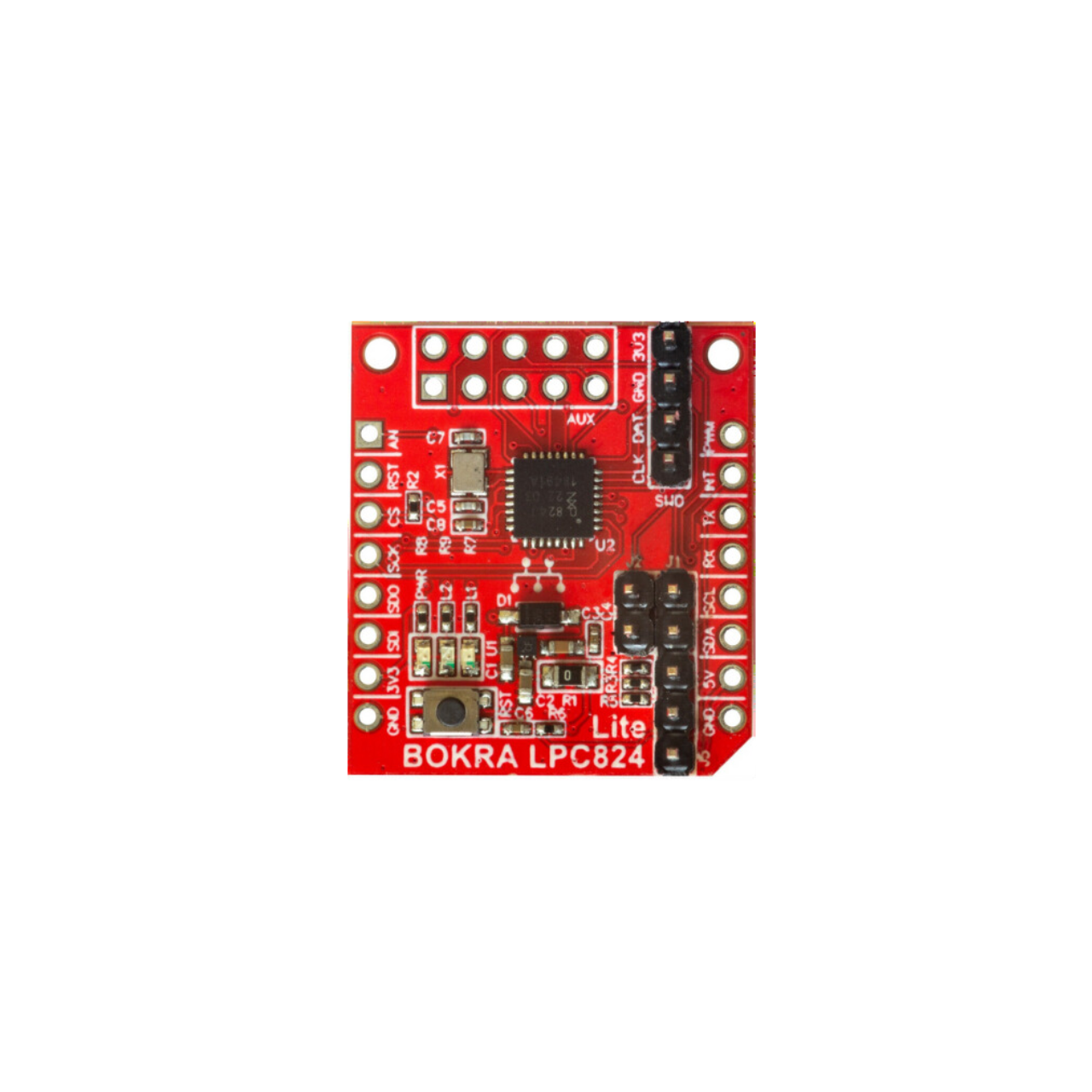

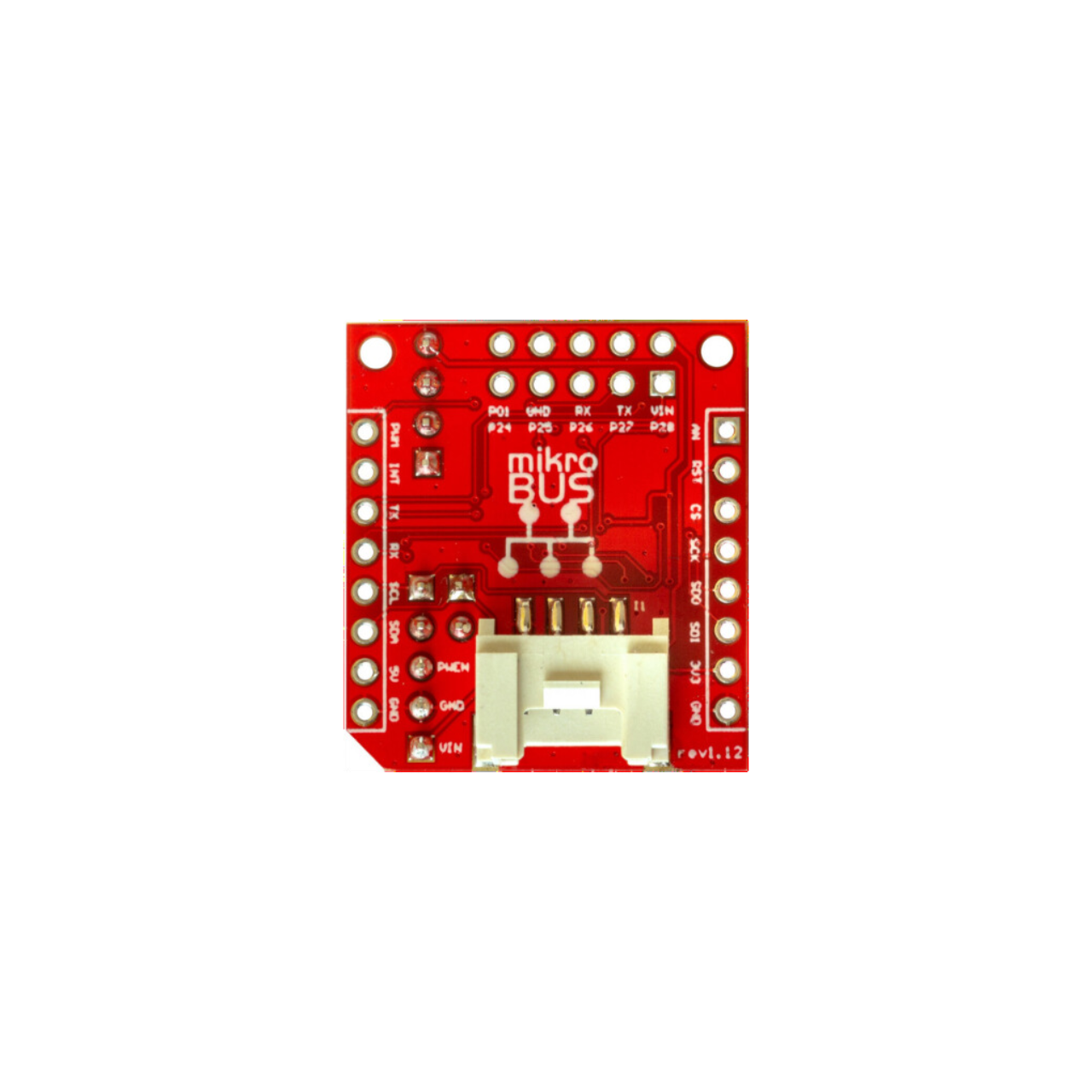

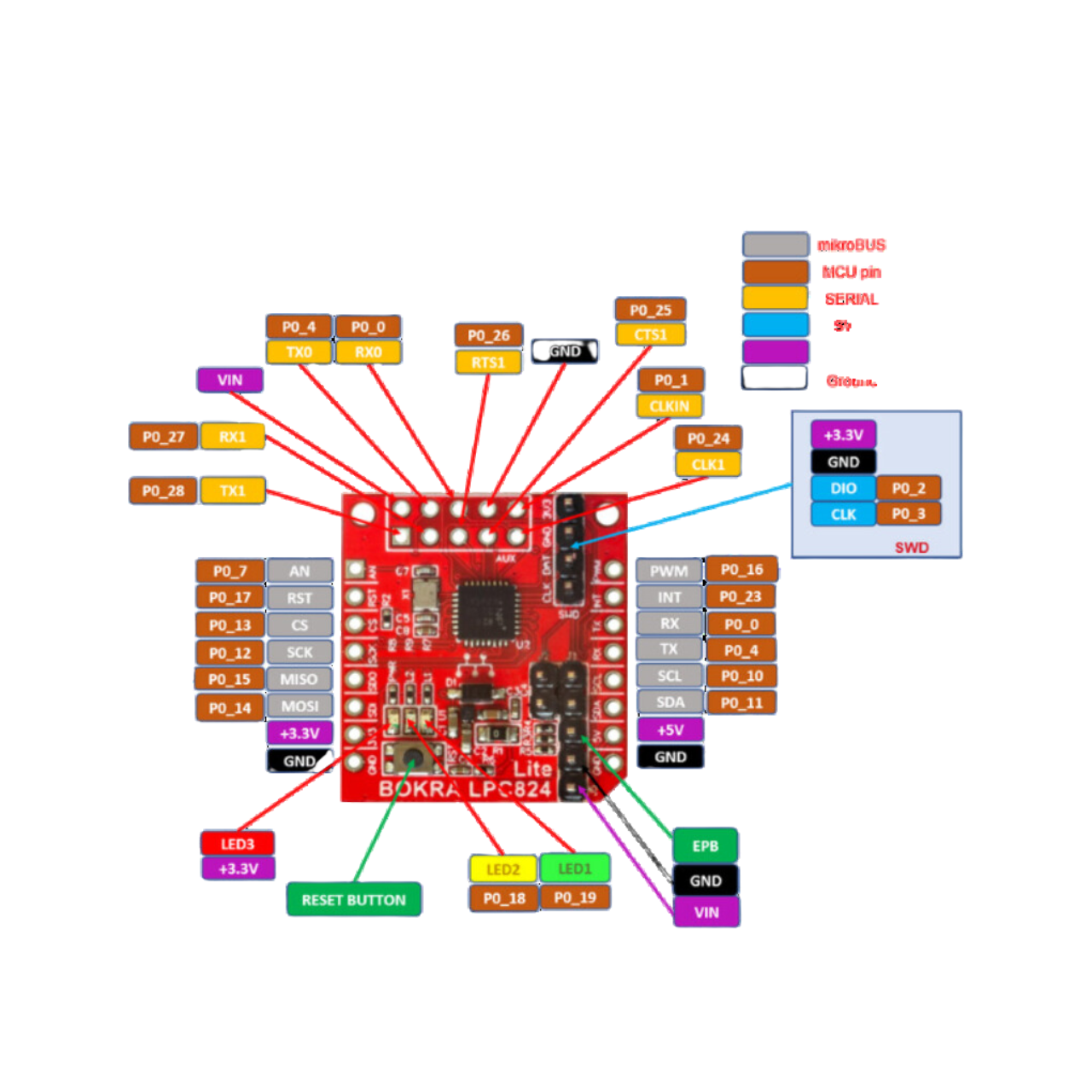

LPC824 Lite and LPC824 microcontroller pinout are listed in the datasheet in the Specs and Docs section.

Input power supply - 5V. The voltage regulator is Microchip's MIC5528, providing 500 mA output current. The module has a RESET button and three LEDs (power and two software-controlled). The size of the LPC824 Lite module is 28.6 x 25.4 mm (MikroElektronika mikroBUS^TM size "S"). Therefore, this LPC824 module is the smallest for this microcontroller in the world.

The LPC824 microcontroller is widely used in the following areas:

• IoT and Indistrial IoT (IIoT)
• Sensors and sensor gateways
• Simple motor control
• Industrial Applications
• Portable and wearable devices
• Game controllers
• Lighting
• Consumer devices
• Fire and security applications
• Climate control

All LPC824 Lite users can easy create compact application solutions and instantly overcome the barrier between prototype and factory production stage of their device.

Benefits:

• LPC824 MCU power to expansion modules with mikroBUS^TM interface, Grove Systems peripherals and any I²C modules
• Users will have the opportunity to apply any of more than 500 expansion modules with mikroBUS^TM in their developments based on LPC824
• LPC824 Lite is compatible with LPCXpresso IDE v8.2.2 (popular Free Edition), Keil MDK and other IDE
