IoTextra Octal2 - Isolated 4 DI & 4DO channels module

$15.50
$15.50
Add to wishlist Added to wishlist
Ask us any Question
Details
  • SKU: 040303302310
  • Type: Digital IO
  • Availability: In Stock

DESCRIPTION

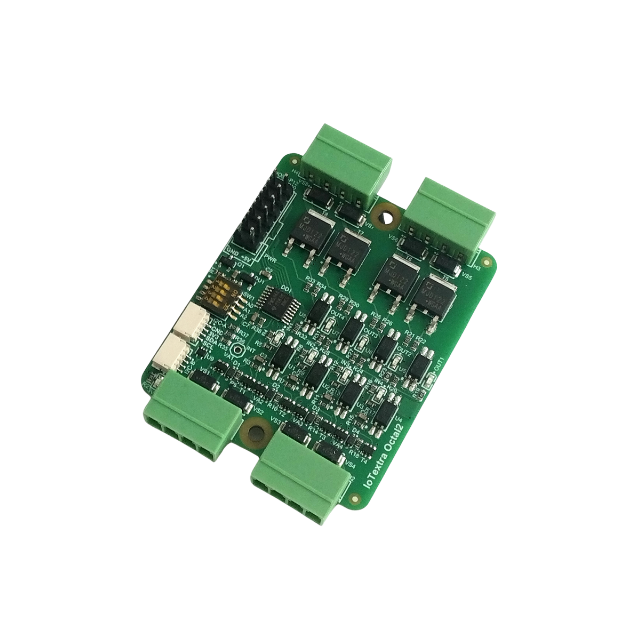

IoTextra Octal2

8-channel digital I/O module · 4 isolated inputs · 4 outputs · galvanic isolation · GPIO and/or I²C modes

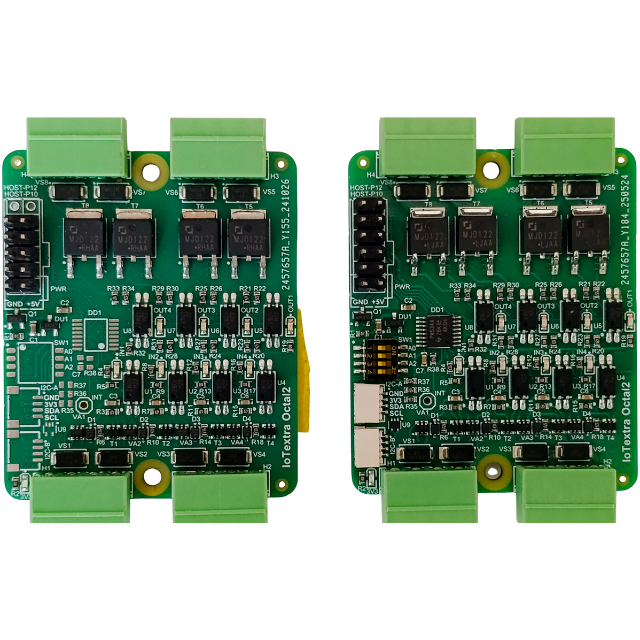

Bipolar and Extended signal modes · HOST and Qwiic connectors · 47×56 mm · 5 VDC supply

Part of the IoTextra series · compatible with IoTsmart and IoTbase · Open Hardware

Ecosystem & Integration

This module is a member of the loTextra series, which serves as a fundamental building block of our ecosystem and embodies the Make Things Happy Philosophy. It is engineered to bridge the gap between rapid prototyping and industrial-grade reliability.

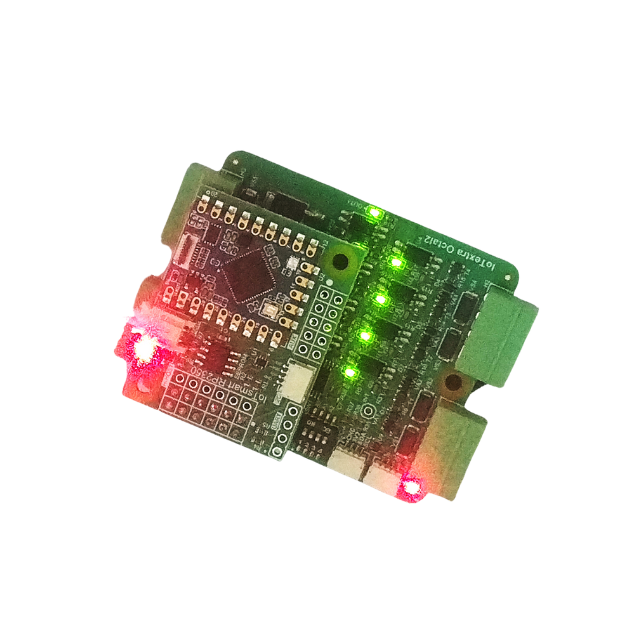

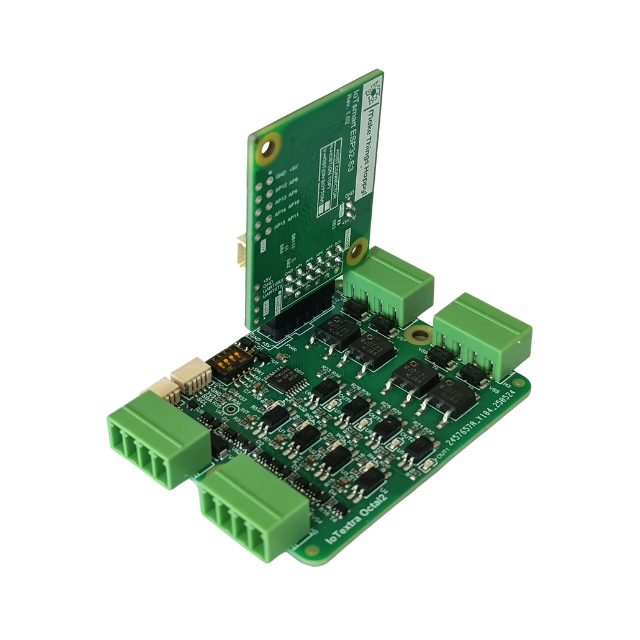

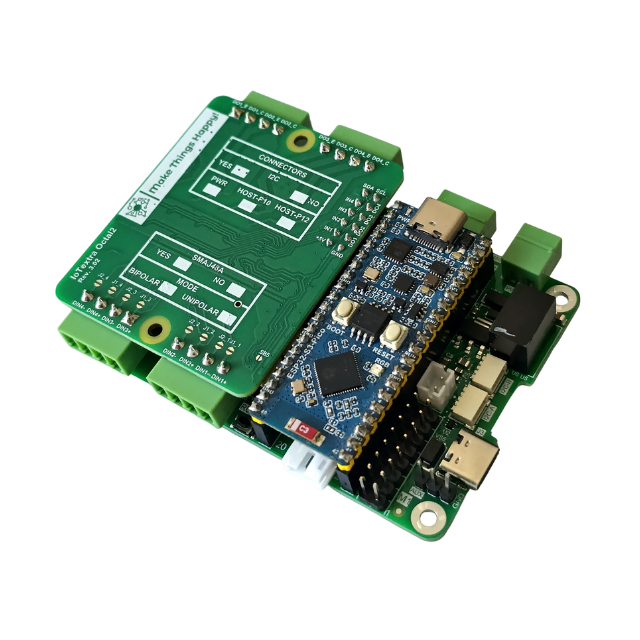

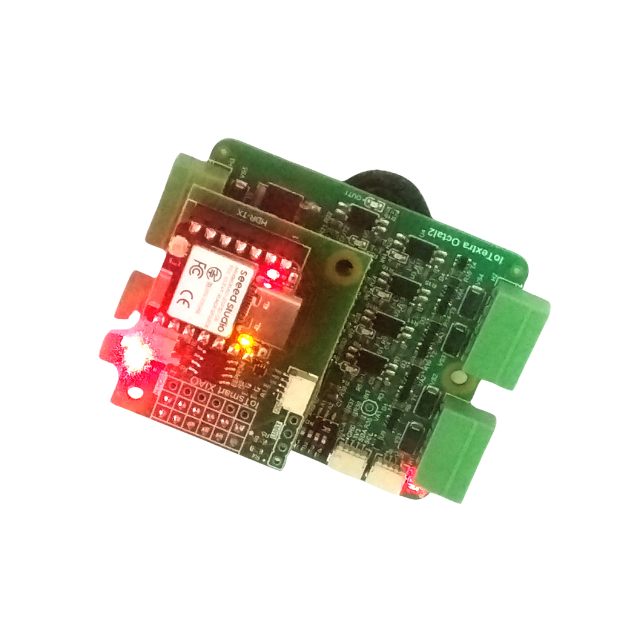

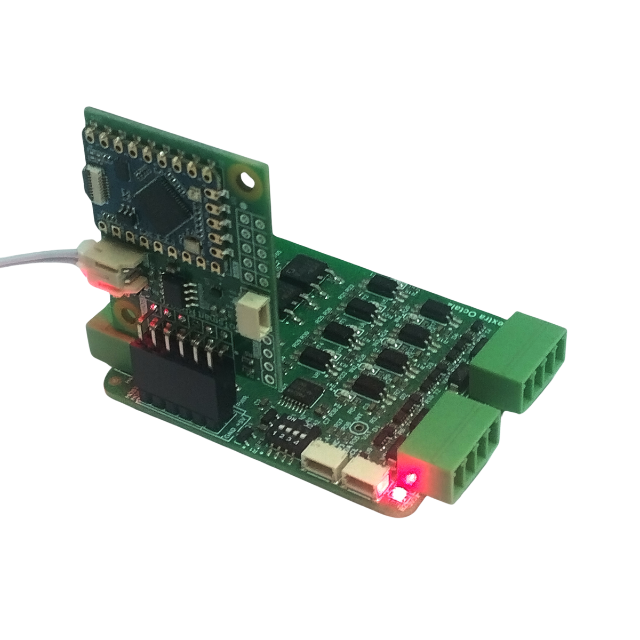

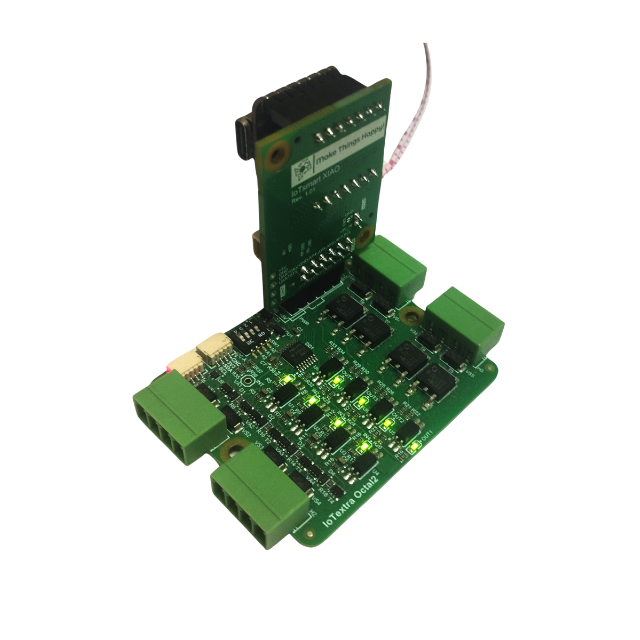

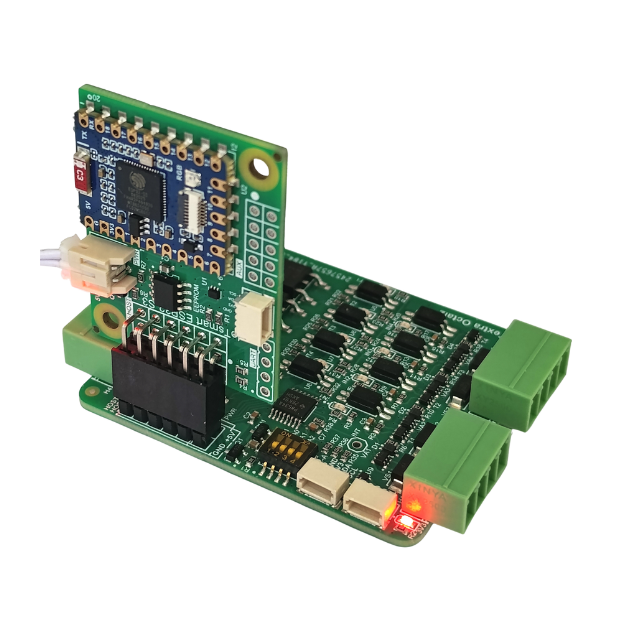

Hardware Synergy: The module is compatible with both IoTsmart and IoTbase series.

Software Power: This hardware compatibility unlocks the full potential of the IoTflow platform. It enables you to:

  • Create custom Node-RED nodes effortlessly.
  • Integrate via MQTT with third-party global platforms like Blynk.
  • Scale your project from a single node to a complex industrial network.

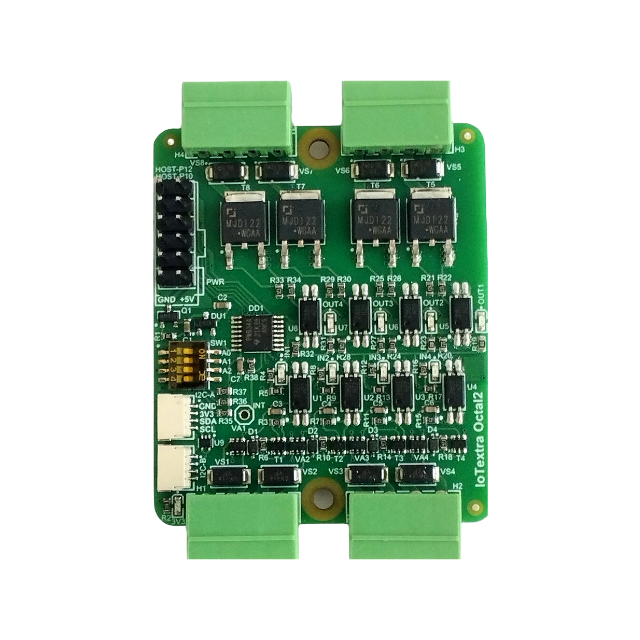

Key Features

  • Eight Digital Channels: The module provides four digital inputs and four digital outputs.
  • High-Voltage Input: Digital input signals can handle a maximum level of up to 36 VDC.
  • Powerful Outputs: Digital output signals are generated by NPN transistors with impressive parameters:
    • Collector Current: 8A (peak up to 16A)
    • Voltage: up to 100 VDC
    • Power Dissipation: 20W
  • Superior Isolation: All channels feature individual galvanic insulation with an electrical insulation strength of 3750 Vrms.

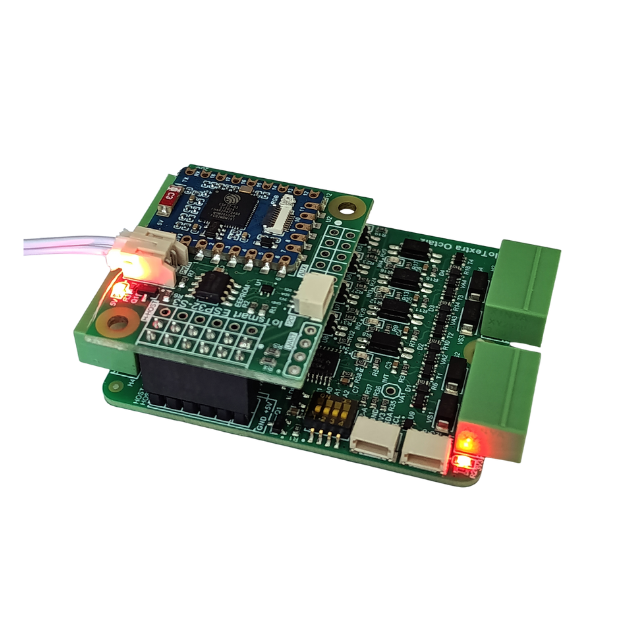

  • Status Indication: The status of the digital channels is clearly indicated on the module.

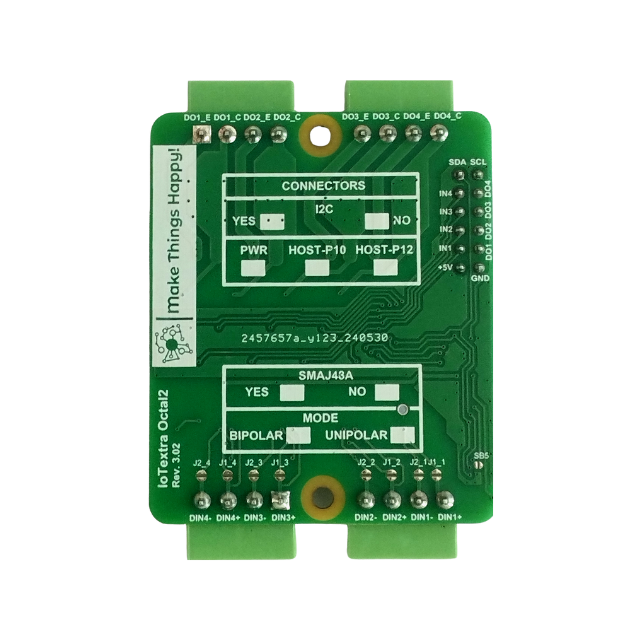

Flexible Operation Modes

The IoTextra Octal2 offers two primary modes of operation, providing flexibility for your project:

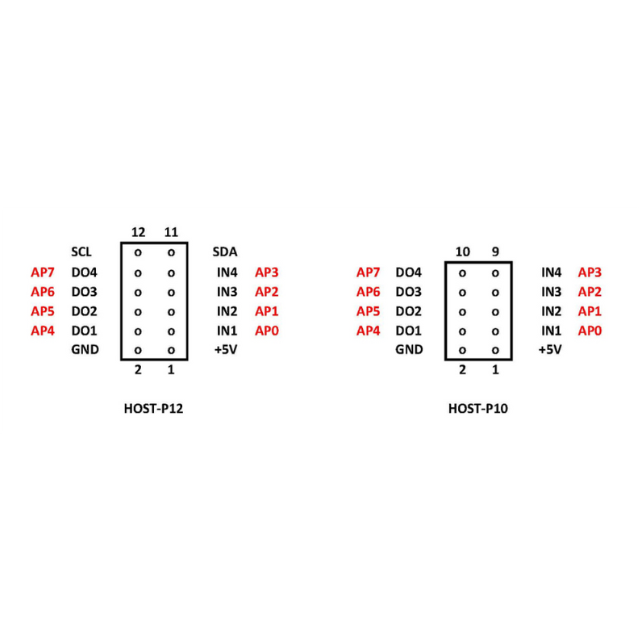

  1. GPIO Mode: Input state reading and output signal control are managed directly using the AP0-AP7 signals on the HOST-P connector.

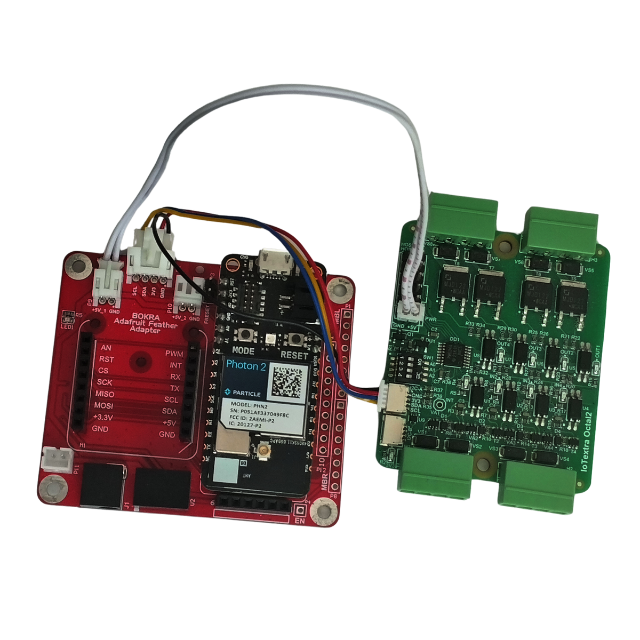

  2. Mode: Control and reading are handled via the serial I2C bus using an integrated I/O expander (TCA9534 or compatible).

You can connect up to 16 modules to a single bus. Furthermore, a hybrid mode is possible, allowing you to use the AP0-AP7 signals for some channels and the I/O expander for the rest.

Compact Design & Applications

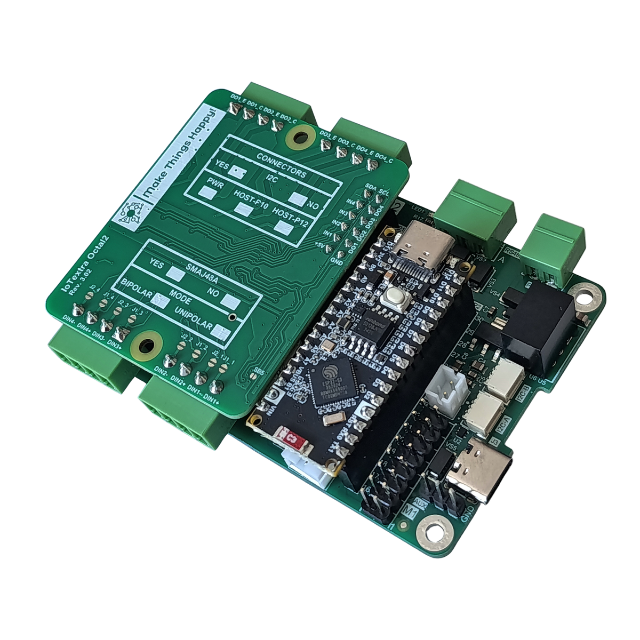

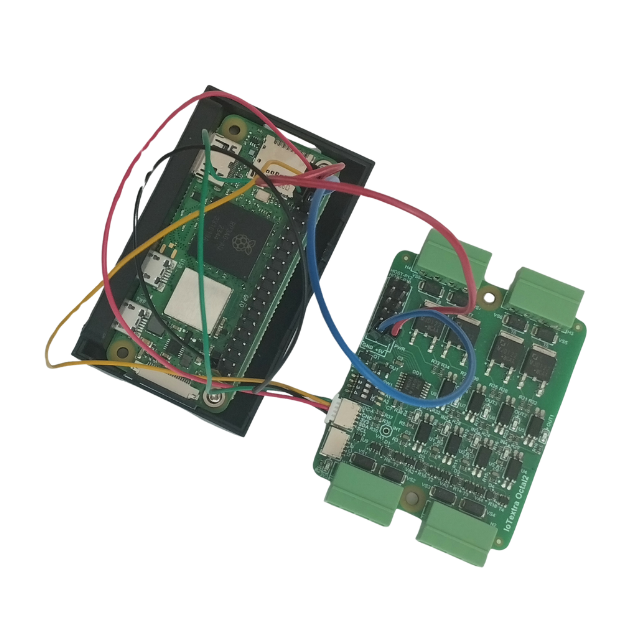

The module's compact size of 47x56 mm and integrated mounting holes allow for easy installation in a base module or a Raspberry Pi.

The IoTextra Octal2 is ideal for a wide range of applications, including:

  • Industry
  • PLC (Programmable Logic Controllers)
  • Robotics
  • Data Acquisition Systems (DAS)
  • Energy Industry
  • Scientific Equipment
  • Smart Home
  • Consumer Electronics
  • Education
