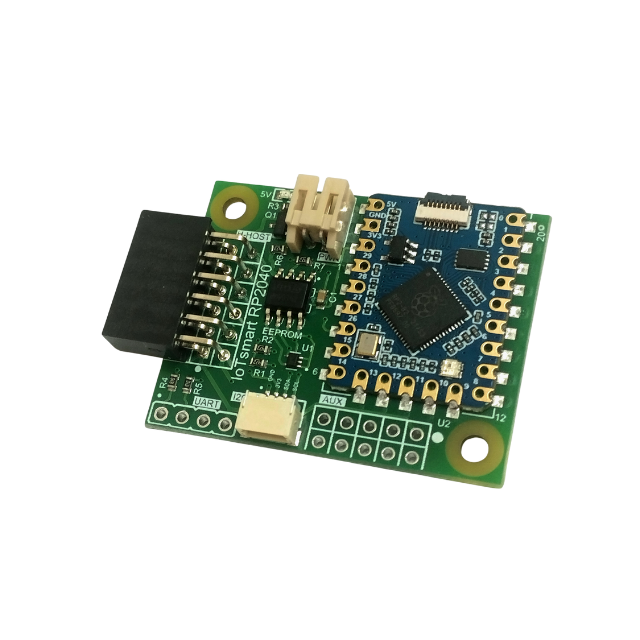

IoTsmart RP2040 Module: Your Essential IoT Controller

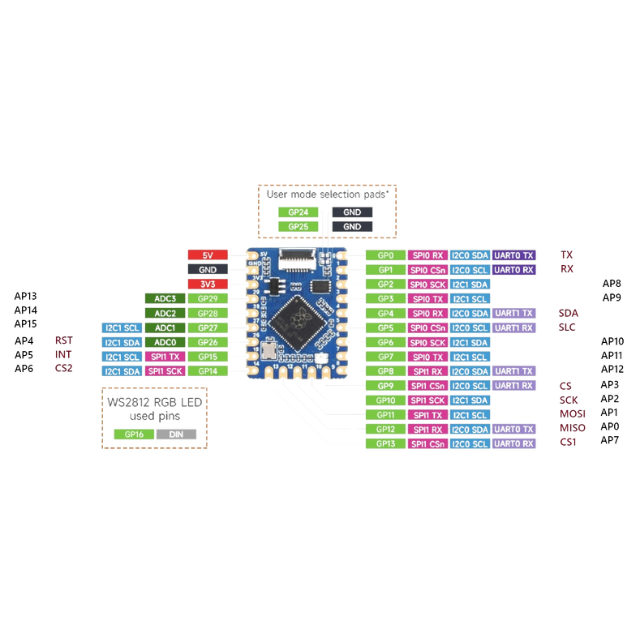

Elevate your loT projects with the IoTsmart RP2040 module, featuring the integrated Waveshare RP2040-Tiny module. This versatile controller is engineered to seamlessly control and monitor your loTextra series mezzanines, enabling precise handling of both digital and analog solutions.

Compatible Mezzanines:

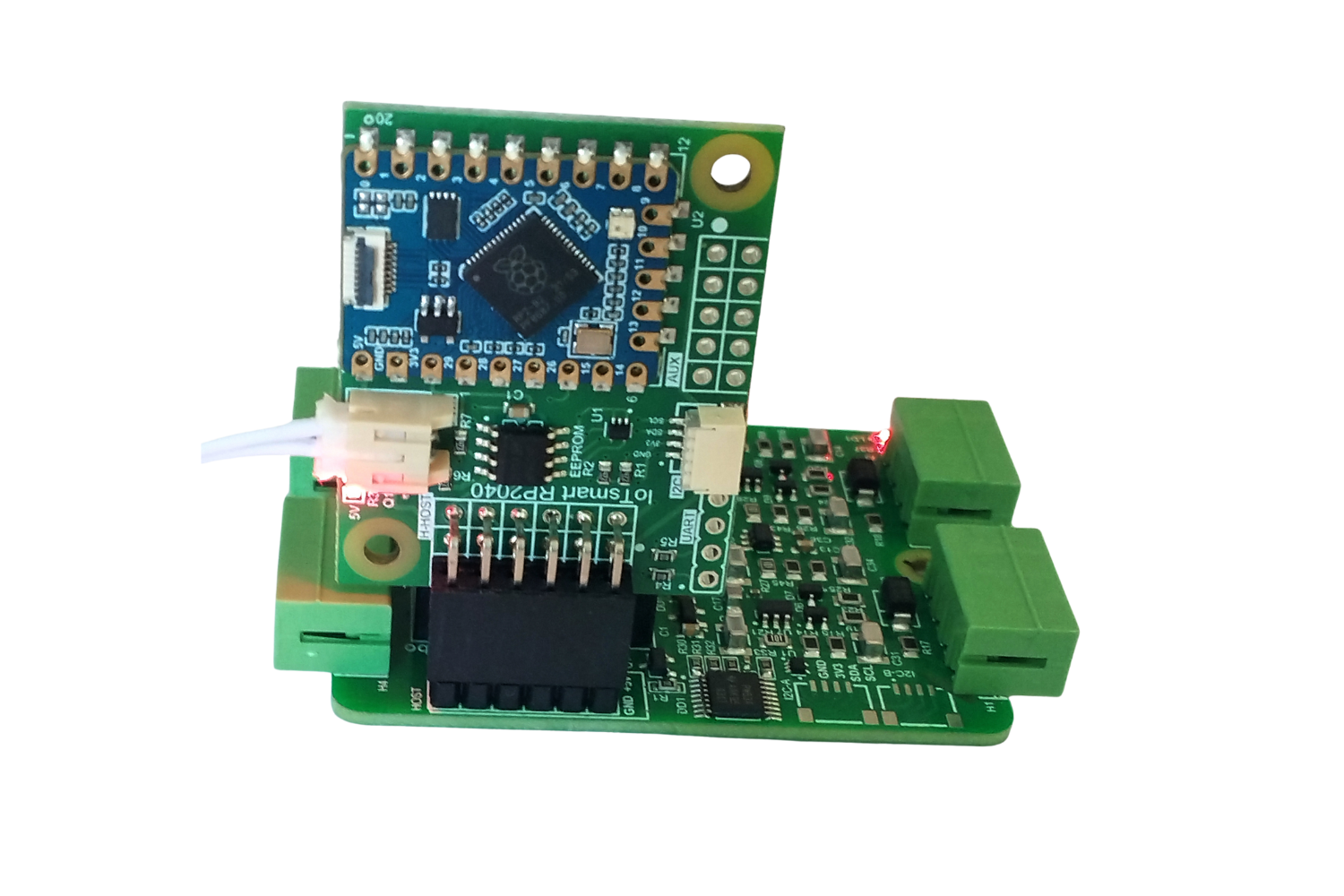

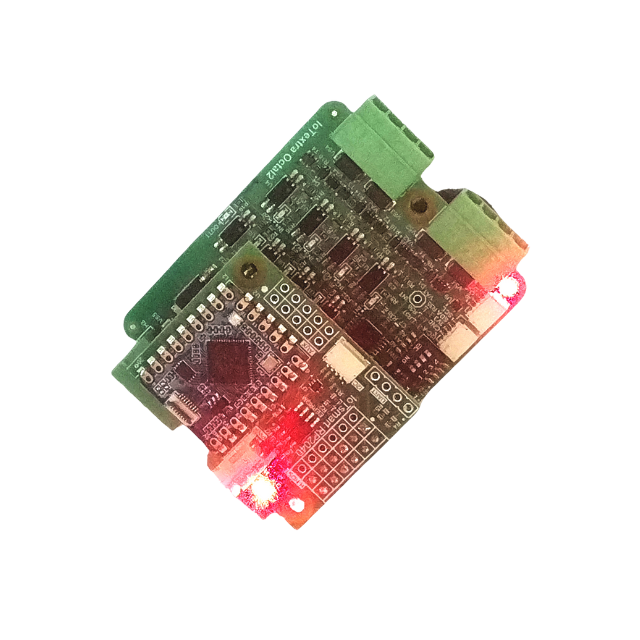

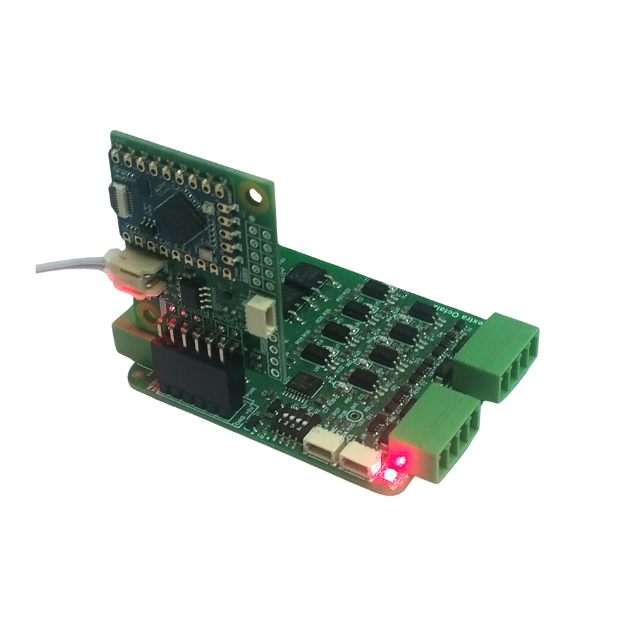

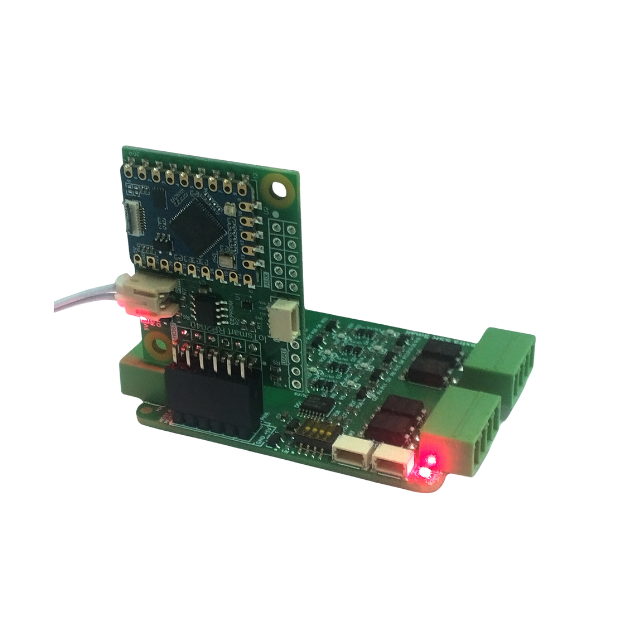

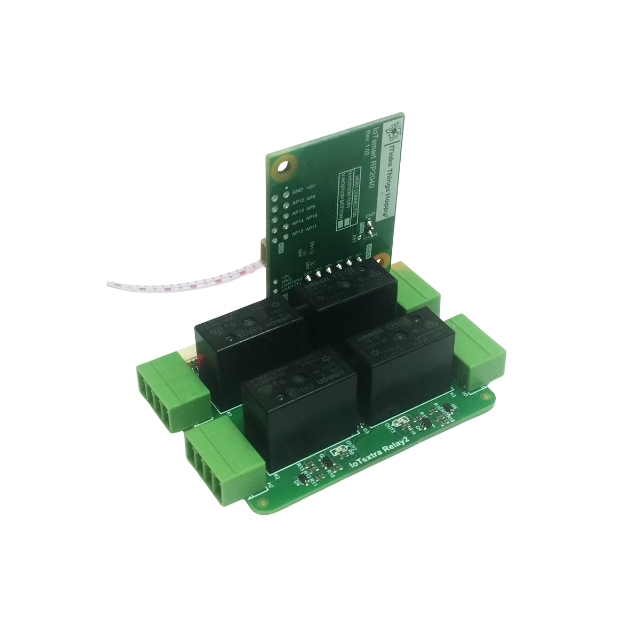

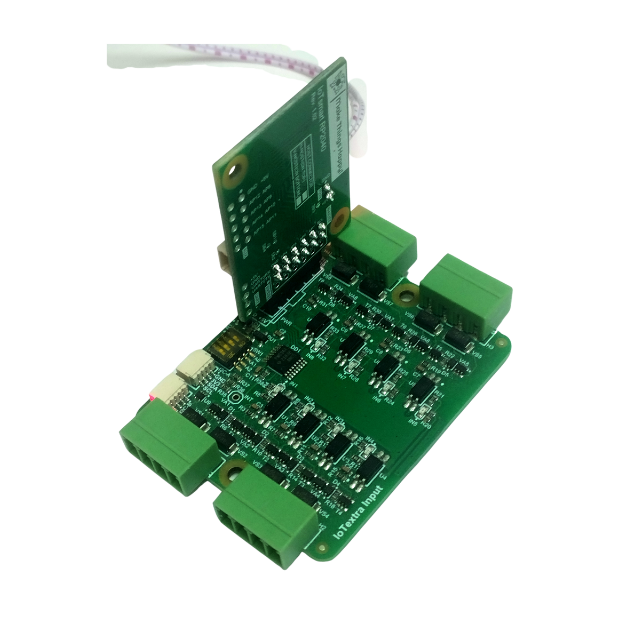

• Digital: IoTextra Input, IoTextra Relay2, IoTextra SSR Small, IoTextra Octal2

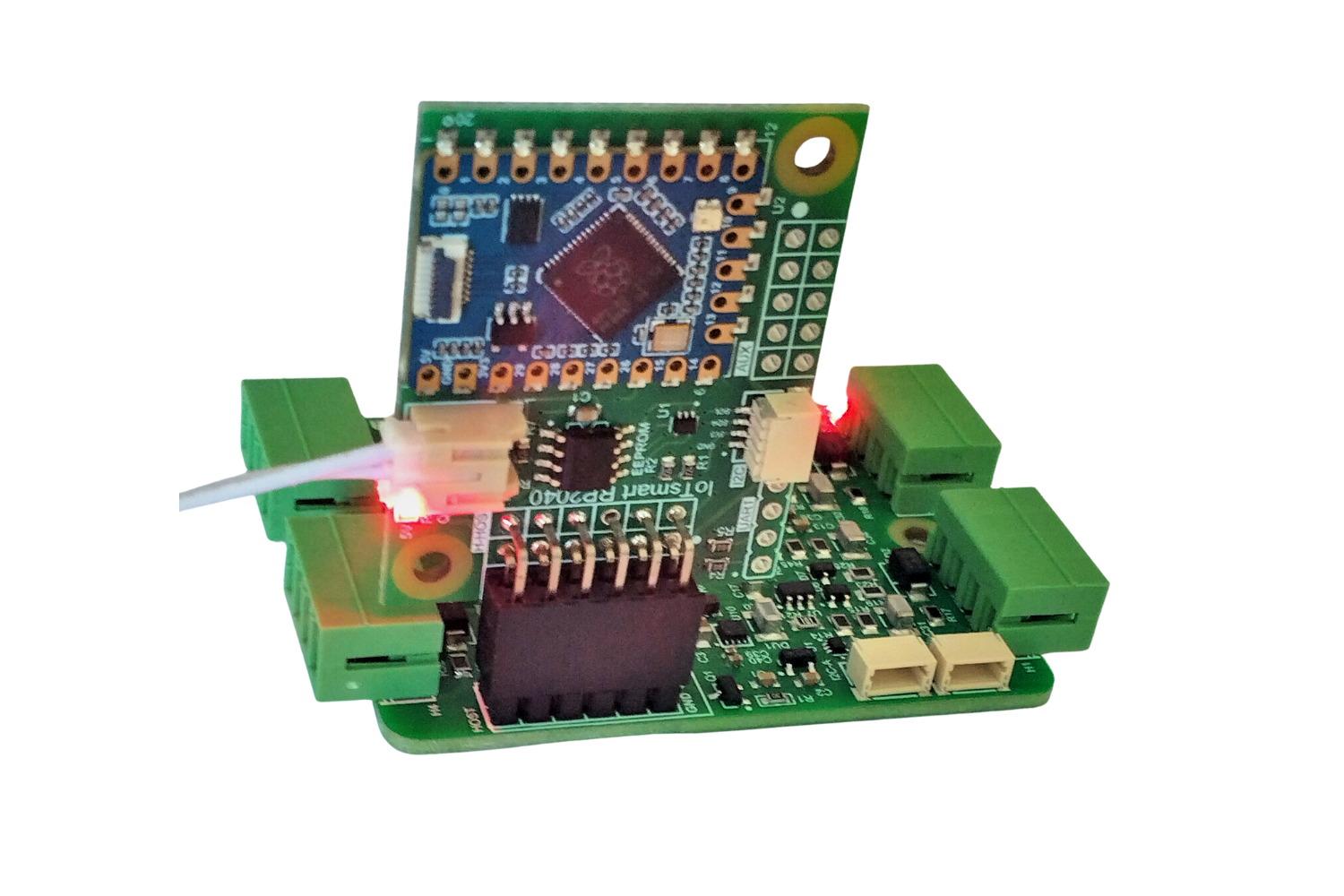

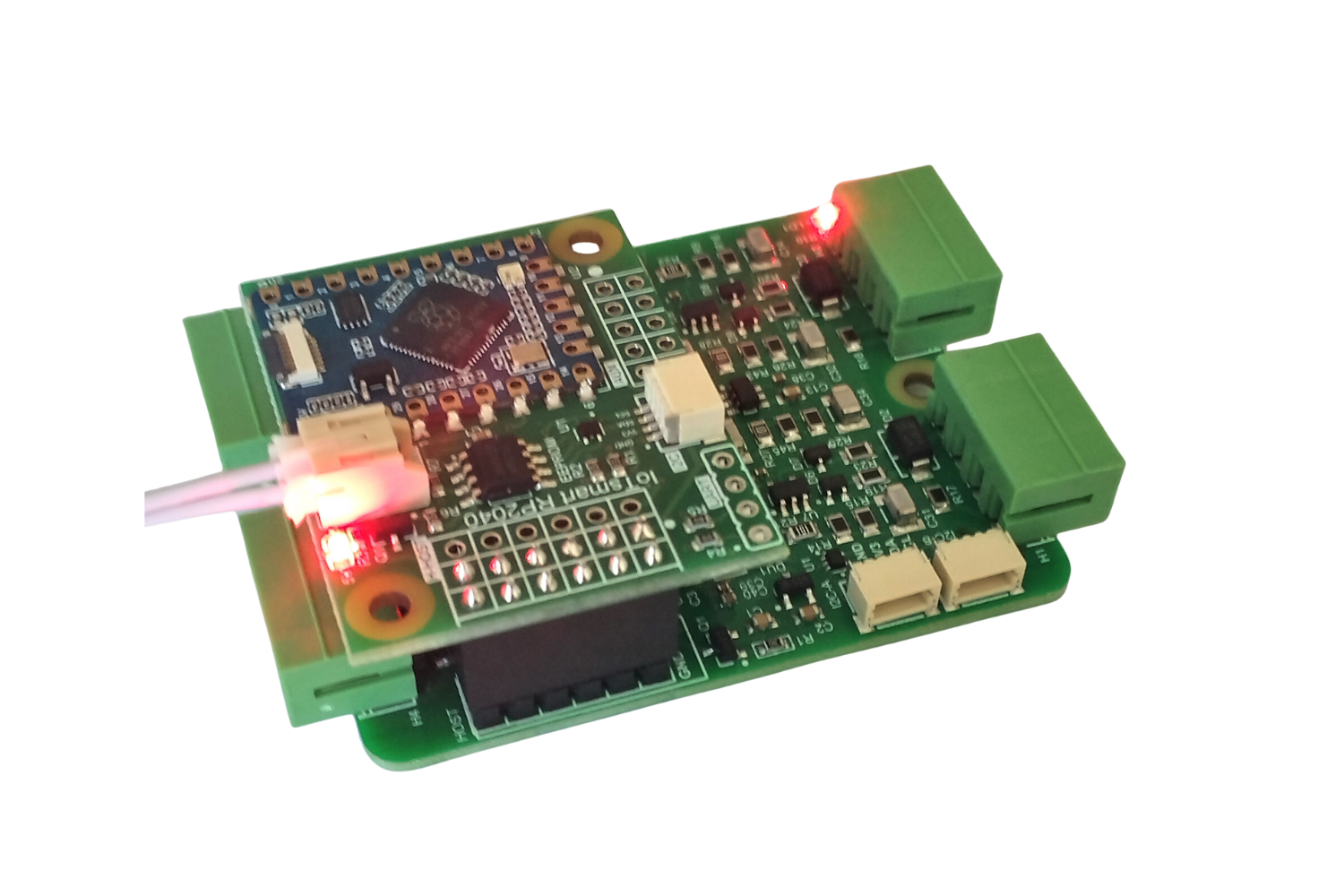

• Analog: IoTextra Analog

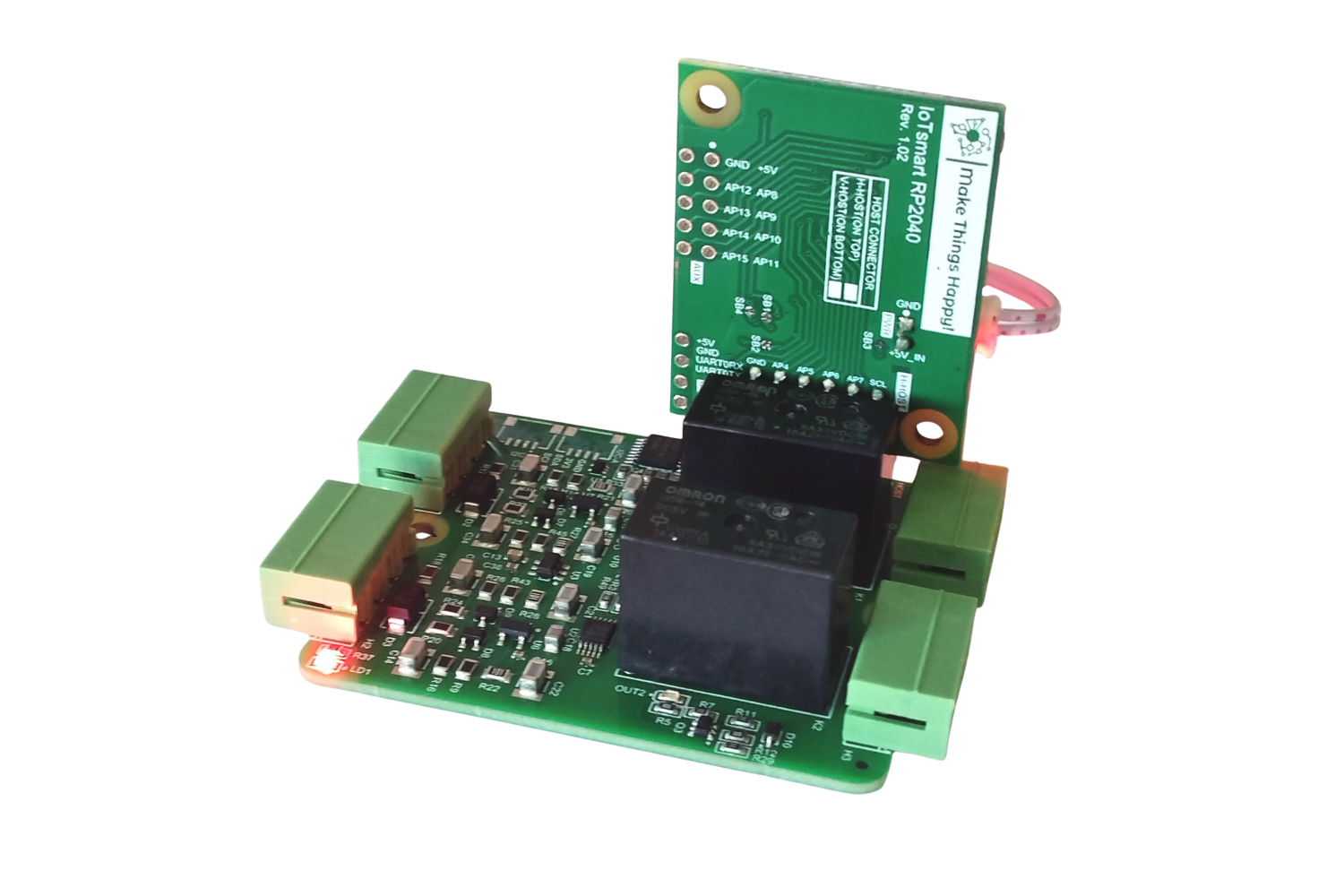

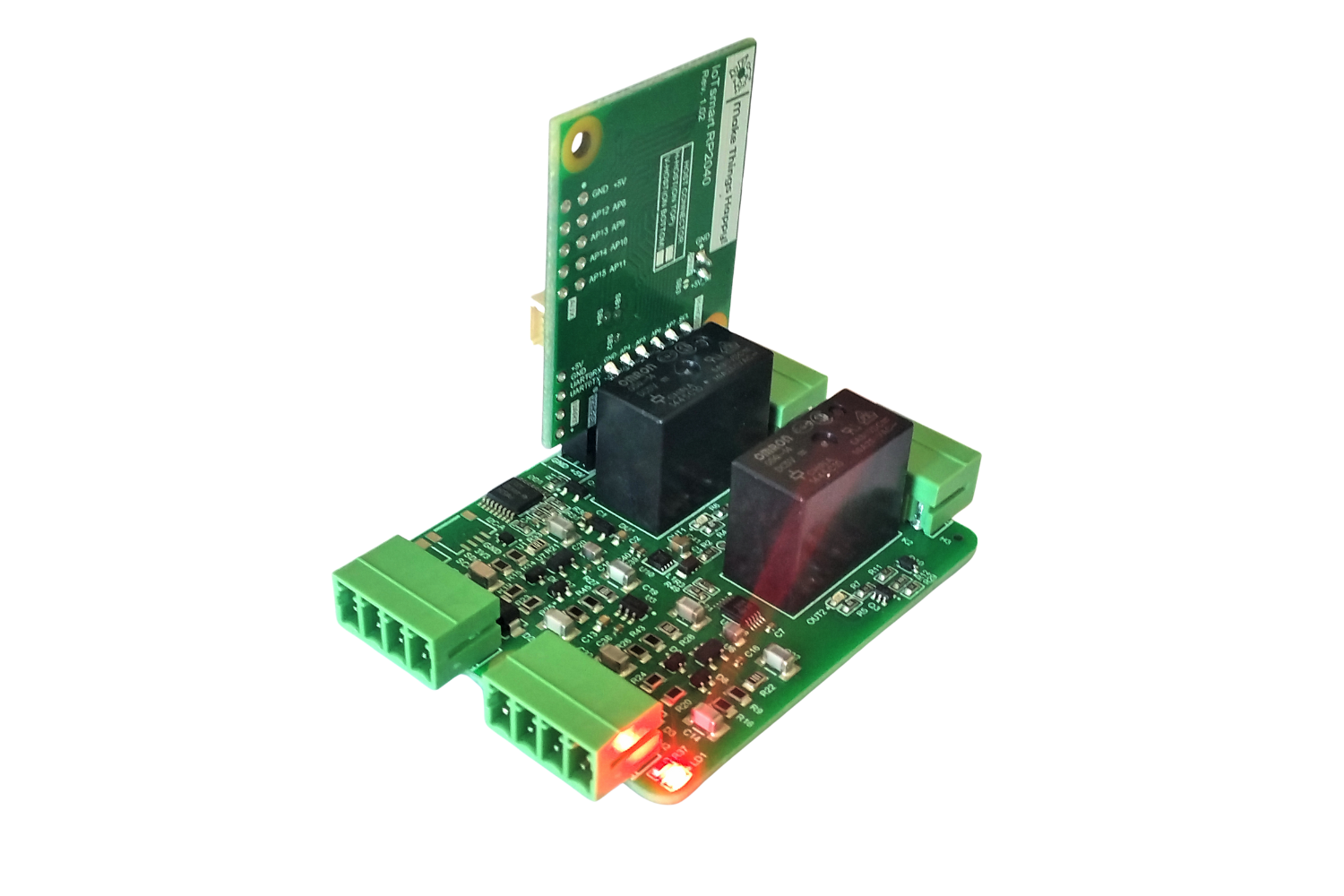

• Combo: IoTextra Combo

Core Performance & Features

• Powerful Processor: At its heart, the IoTsmart RP2040 boasts a robust dual-core Arm Cortex M0+ processor, delivering flexible clock speeds up to 133 MHz.
• Provides generous space for your applications thanks to 264KB of SRAM and 2MB of onboard flash memory.
• Enhanced Data Storage: Includes an 8Kbit EEPROM (1024x8 bit, M24C08 or compatible) for configuration storage and user data storage.

Flexible Connectivity for Your Projects

The IoTsmart RP2040 offers robust connectivity designed for your convenience:

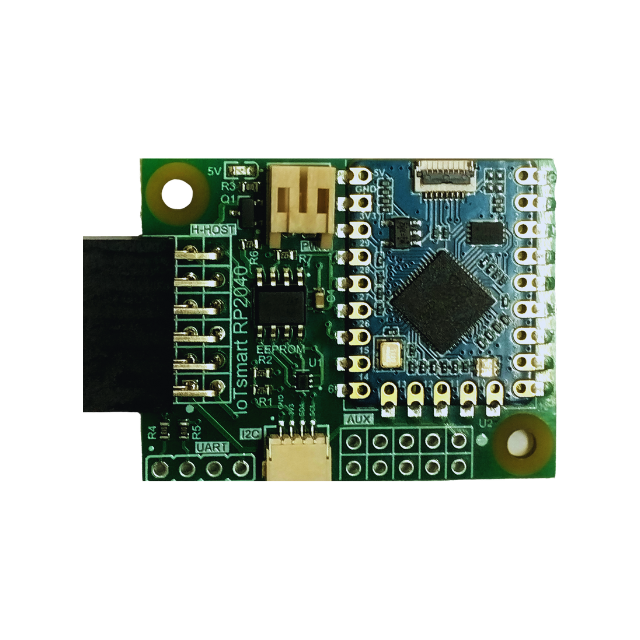

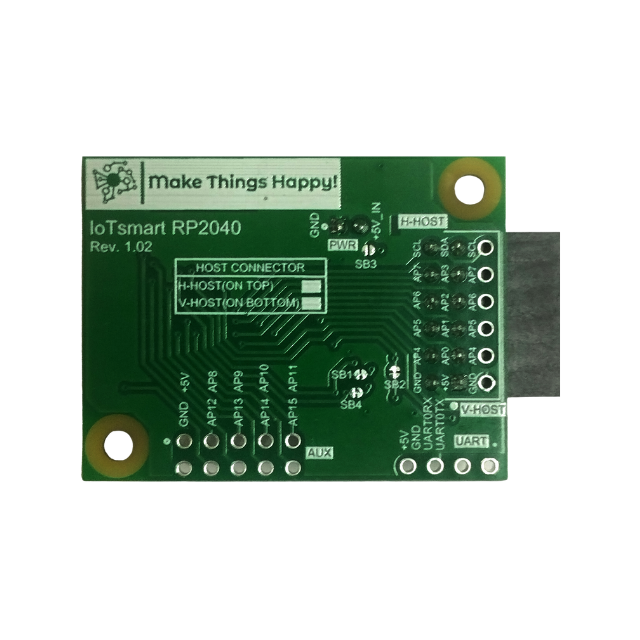

• 12-pin HOST Connector: Provides I²C (SDA and SCL), 8 GPIO contacts, and two power contacts (+5V and GND). Choose your installation method:
• TOP (H-HOST) Option: For vertical mounting into your IoTextra series mezzanine.
• BOTTOM (V-HOST) Option: For horizontal mounting into your IoTextra series mezzanine.
• Optional AUX Connector: Adds a 10-pin AUX connector for power and 8 extra GPIOs.
• Qwiic^© Connectivity: Seamlessly integrate other modules and sensors via the Qwiic^© connectors for I²C communication. The module includes onboard I²C pull-up resistors, which are enabled by default.
• Optional UART: Add an optional UART connector for expanded serial capabilities.

Note: Some mezzanines, such as certain versions of the IoTextra Relay2, are too tall for the V-HOST connector.

Power & Support Details

• Input Power: The module operates on a non-isolated +5VDC input power, conveniently supplied via JST (S2B-PH-K-S, 2.00 mm pitch) connector.
• Compact Size: Measuring just 31 x 40 mm, it's designed to fit seamlessly into a wide range of applications.

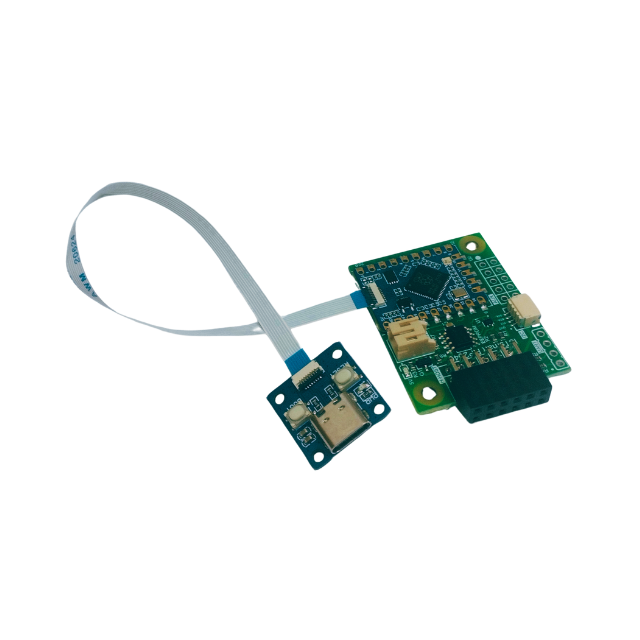

• Debugging: For debugging your projects, a Tiny Adaptor Board with Cable is required (please note: this item is not included and must be purchased separately).
