RP2040 Plus - same as Raspberry Pi Pico, but with 4MB/16MB Flash

Need more Flash for Raspberry Pi Pico? Dislike the outdated Micro USB connector? All these problems are solved by our RP2040-Plus now.

 As same as Raspberry Pi Pico, it incorporates the RP2040 microcontroller, with dual-core Arm Cortex M0+ processor running up to 133 MHz, and 26x multi-function GPIO pins.

What's different, it features onboard 4MB/16MB (optional) Flash, USB-C connector, recharge header, and higher current DC-DC chip.

Key features include:

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom

Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

264KB of SRAM, and 4MB/16MB (optional) of on-board Flash memory

USB-C connector, keeps it up to date, easier to use

Lithium battery recharge/discharge header, suitable for mobile devices

Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip, maximum 2A load current

Castellated module allows soldering direct to carrier boards

USB 1.1 with device and host support

Low-power sleep and dormant modes

Drag-and-drop programming using mass storage over USB

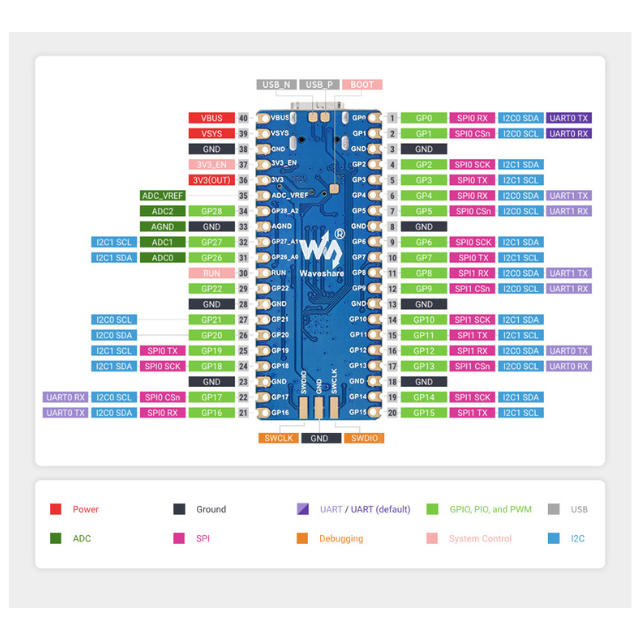

26 × multi-function GPIO pins

2 × SPI, 2 × I²C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels

Accurate clock and timer on-chip

Temperature sensor

Accelerated floating-point libraries on-chip

8 × Programmable I/O (PIO) state machines for custom peripheral support
