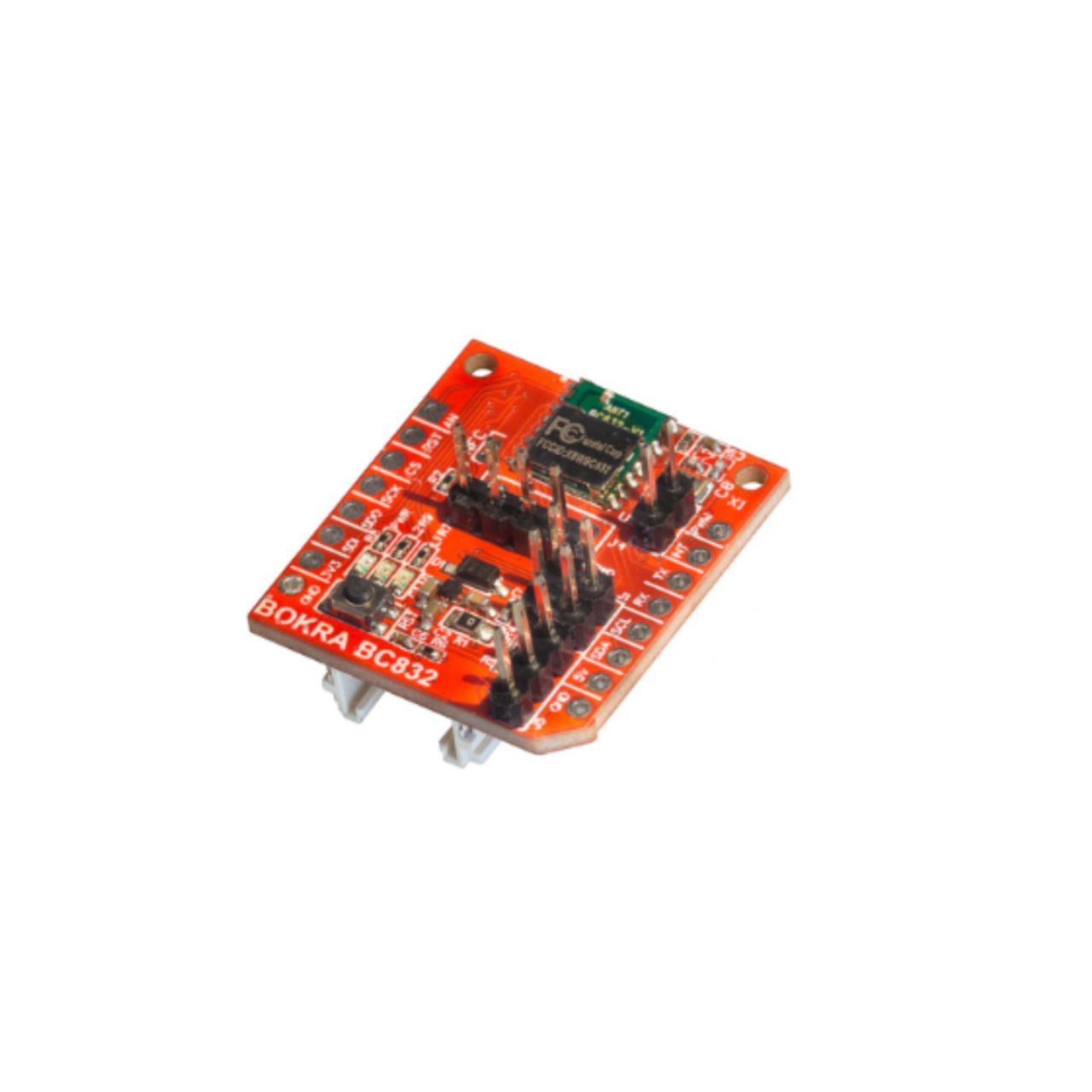

BC832 - BLE5.0 module with Cortex-M4

The BC832 module uses the Fanstel compact SIP (system-in-package) BC832. The BC832 is a powerful, very flexible, low-power Bluetooth (BLE) smallest microcontroller board that uses the Nordic nRF52832 CIAA. This microcontroller has a Cortex M4 architecture, extended FPU (floating point calculation). Frequency – 64 MHz. MCU flash memory - 512 kB, RAM - 64 kB.

The microcontroller supports up to two I²C interfaces, up to three SPI interfaces and USART. The microcontroller contains 12-bit ADC (speed – 200 Ksps).

The BC832 SIP contains a built-in 2.4 GHz multi-protocol transceiver and an integrated antenna for the printed circuit board. The range of BLE - up to 50 meters.

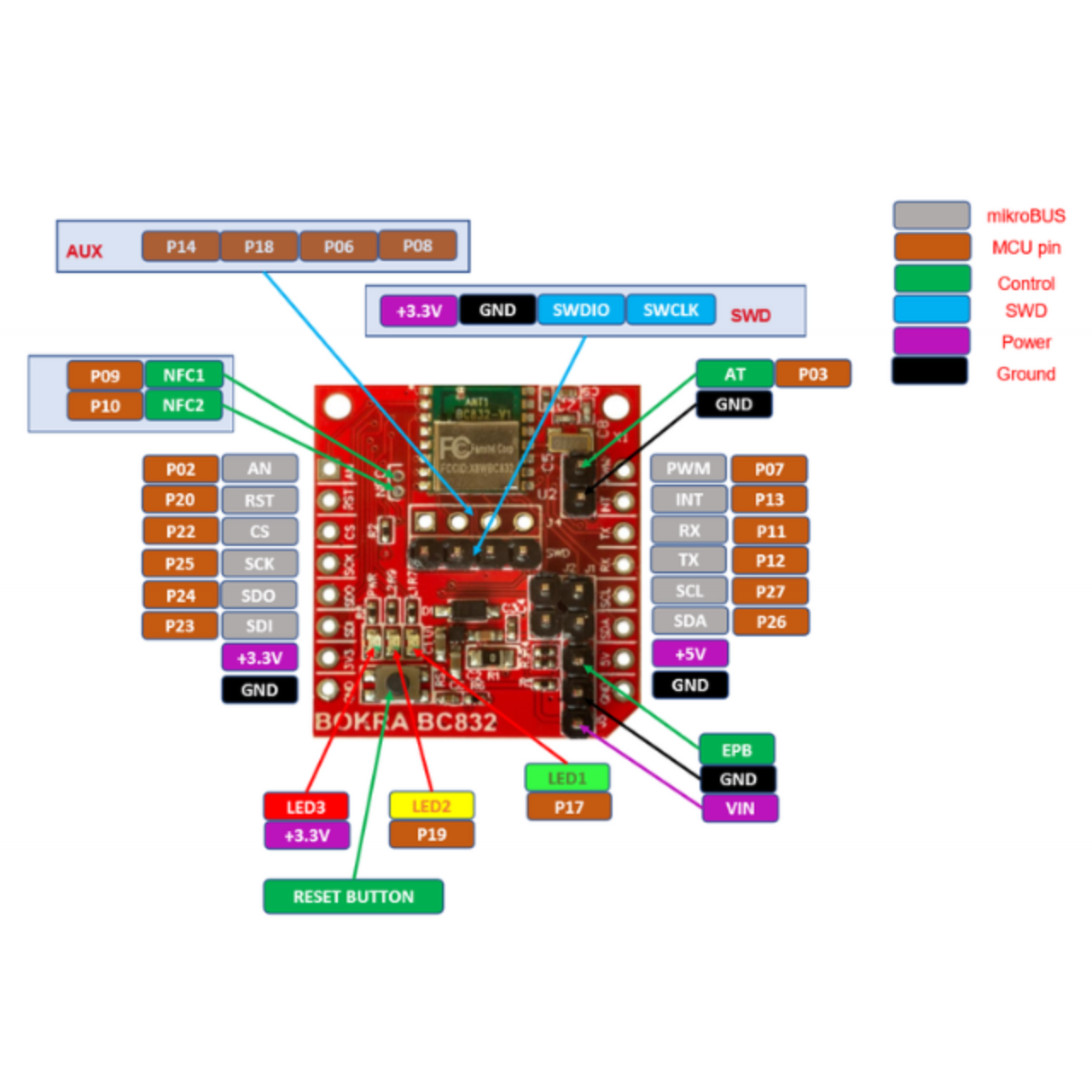

It is possible to use the interface NFC-A tag. Debug Interface - SWD. External connectors - I²C and mikroBUS slot.

Input power - 5V. The voltage regulator is Microchip's MIC5528, providing 500 mA output current. There are RESET button and three LED-indicators (power and two software-controlled).

The size of the BC832 – 28,6 x 25,4 mm (mikroBUS^TM size “S”)

The Fanstel website lists the main areas of use for SIP BC832. Listed below are the ones for which the BC832 module is best suited:

• IoT (Internet of Things)
• Buildings and houses automation
• Lighting products
• Sensors
• Portable devices
• Fitness / Sport
• Interactive entertainment devices
