IoTextra SSR Small - 8-Channel Isolated SSR imodule

$27.50
$27.50
Add to wishlist Added to wishlist
Terms & conditions

Ask us any Question
Details
  • SKU:
  • Type: Relay
  • Availability: In Stock

DESCRIPTION

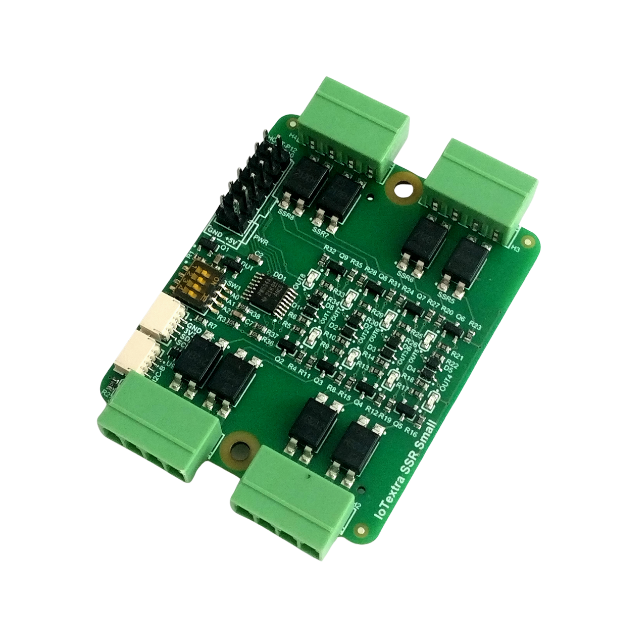

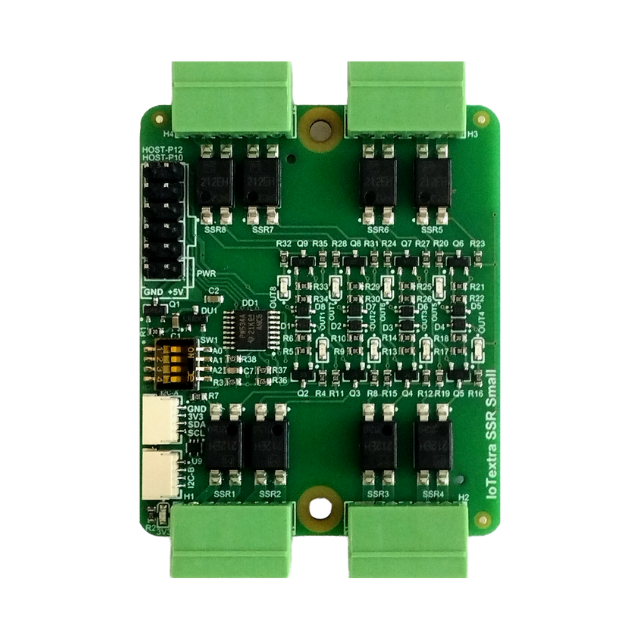

This compact and versatile IoTextra SSR Small module is equipped with eight solid-state relays (SSRs). It offers exceptional flexibility for your control and automation projects, featuring individual galvanic isolation and a high-voltage rating. The IoTextra SSR Small can be used with IoTsmart or IoTbase modules.

Key Specifications

  • Relay Type: Single-Pole Single-Throw Normally Open (SPST-NO, or 1 Form A) contact form.
  • Low On-Resistance: Ranging from 0.05Ω,
  • Isolation: individual galvanic isolation for each channel. Insulation Voltage: 5000Vrms.
  • Module Size: 47x56 mm.

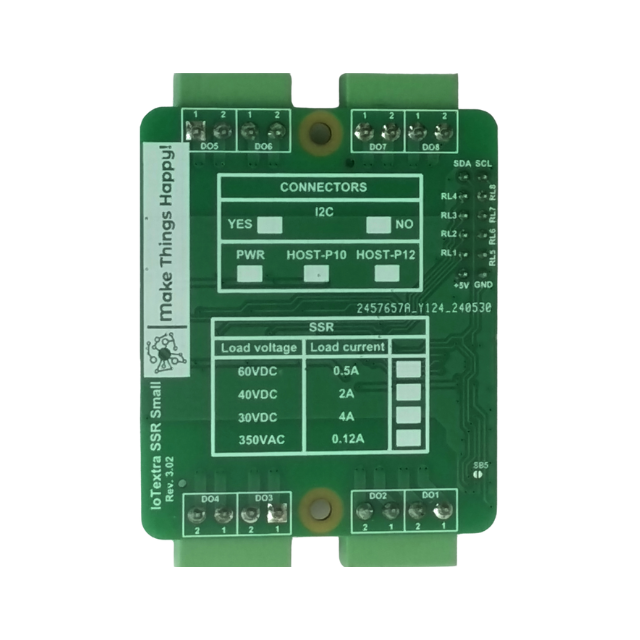

Maximum Switching Capability

The maximum switching voltage and current depend on the specific SSR model.

Load voltage, V           Load current, A          On-resistance, Ω

60                                0.5                              2.5

40                                2                                 0.1

30                                4                                 0.05

350                              0.12                            30

Current If=5mA, voltage Vf – up to 1.5V.



Flexible Control Modes

The IoTextra SSR Small module supports two primary modes of operation:

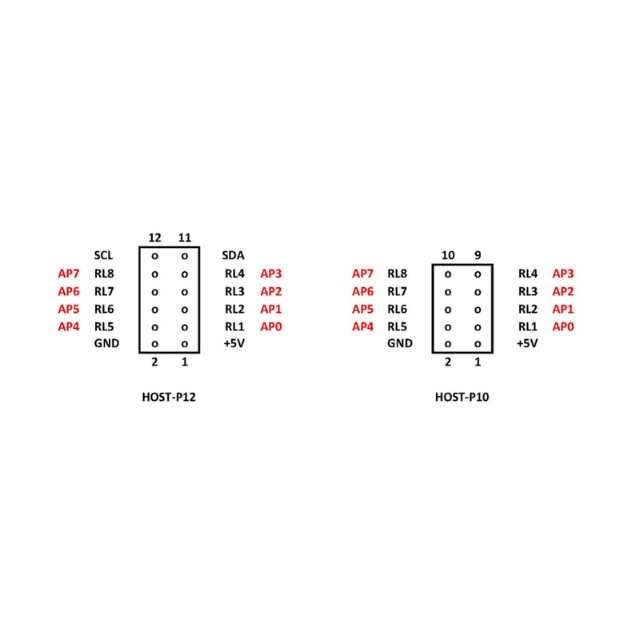

  • GPIO Mode: The state of the SSRs is controlled directly using the AP0-AP7 signals on the HOST-P connector.

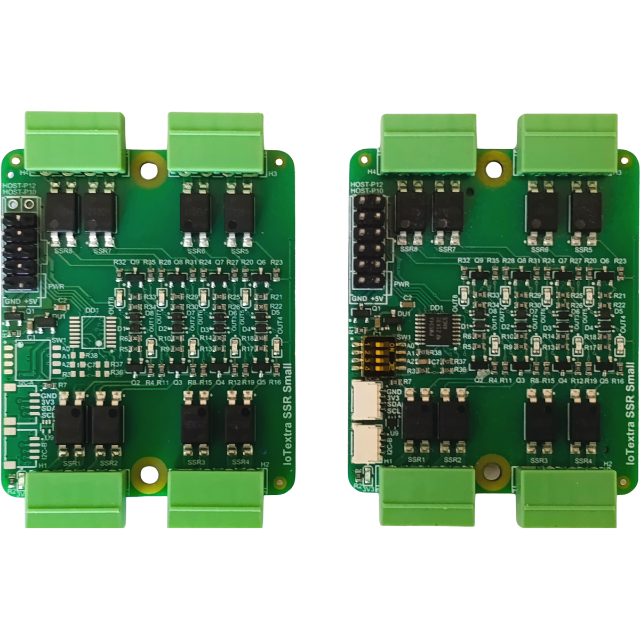

  • I2C Mode: SSR state control is managed via the serial I2C bus using an I/O expander (like the TCA9534 or a compatible chip). Up to 16 modules can be connected to a single bus.

Hybrid Control: You can also use a hybrid approach, controlling some channels with the AP0-AP7 signals and the remaining channels through the I/O expander.

Broad Compatibility

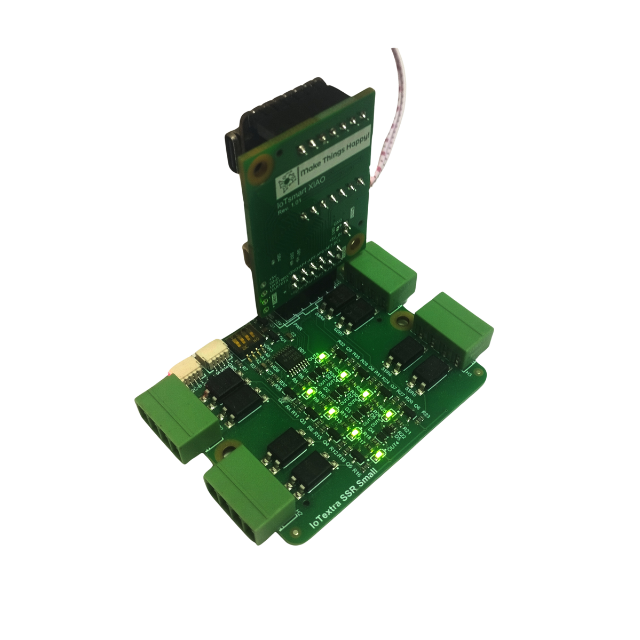

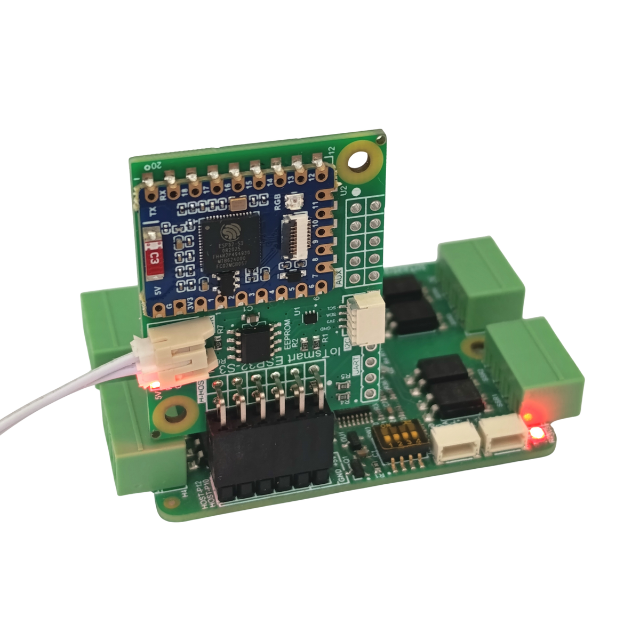

This module is designed for seamless integration with a wide range of popular development boards, including:

  • Raspberry Pi
  • Raspberry PICO
  • Arduino Nano
  • Nucleo32
  • Adafruit
  • Teensy
  • ESP32
  • SeeedStudio XIAO

Primary Applications

The IoTextra SSR Small module is ideal for applications requiring reliable, isolated switching control:

  • Industrial applications
  • Equipment control
  • Consumer electronics and devices
  • Smart home automation
  • Data Acquisition Systems (DAS) and PLCs
  • DC motor control
  • Heating, Ventilation, and Air Conditioning (HVAC) systems
  • Power On/Off switches
  • Lighting control
