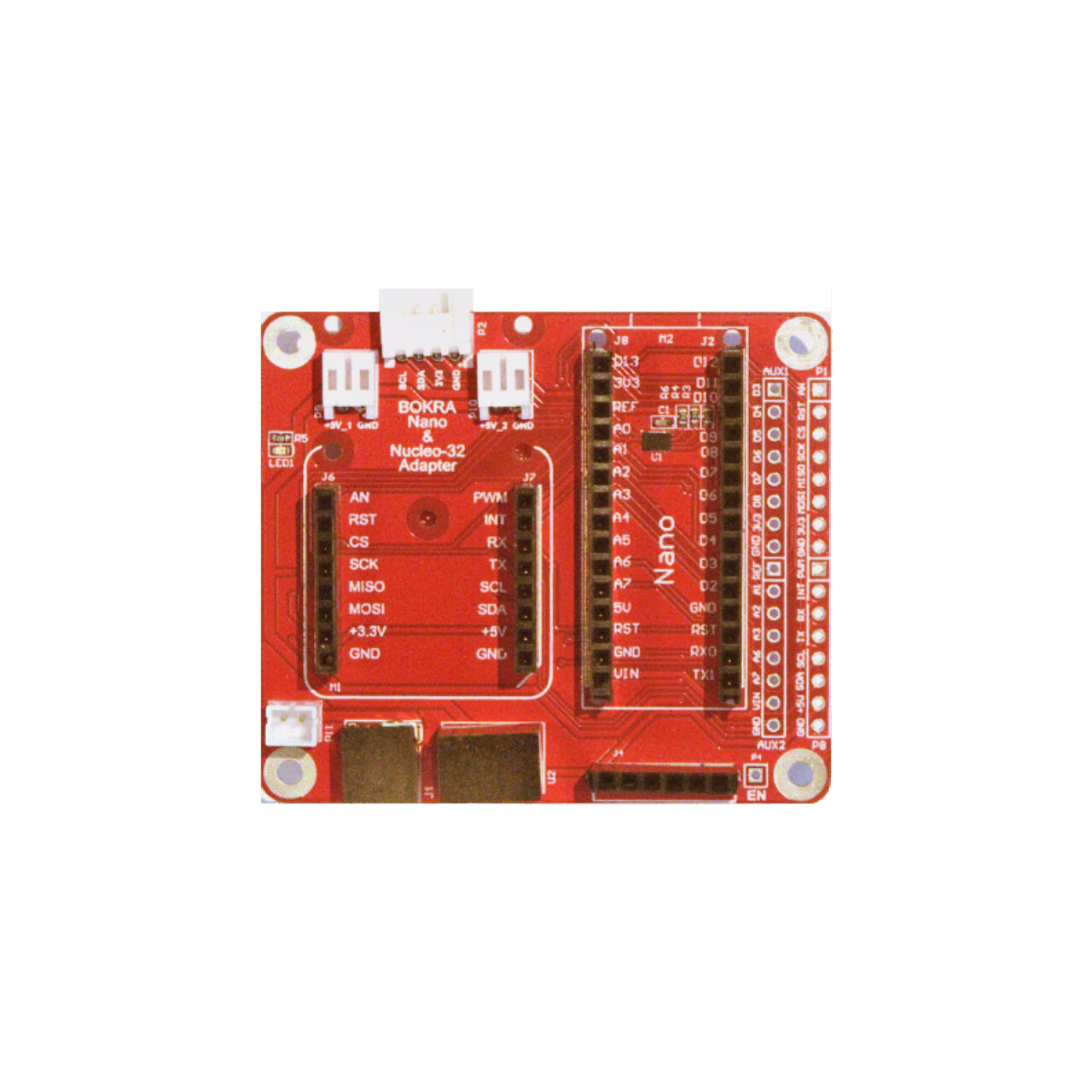

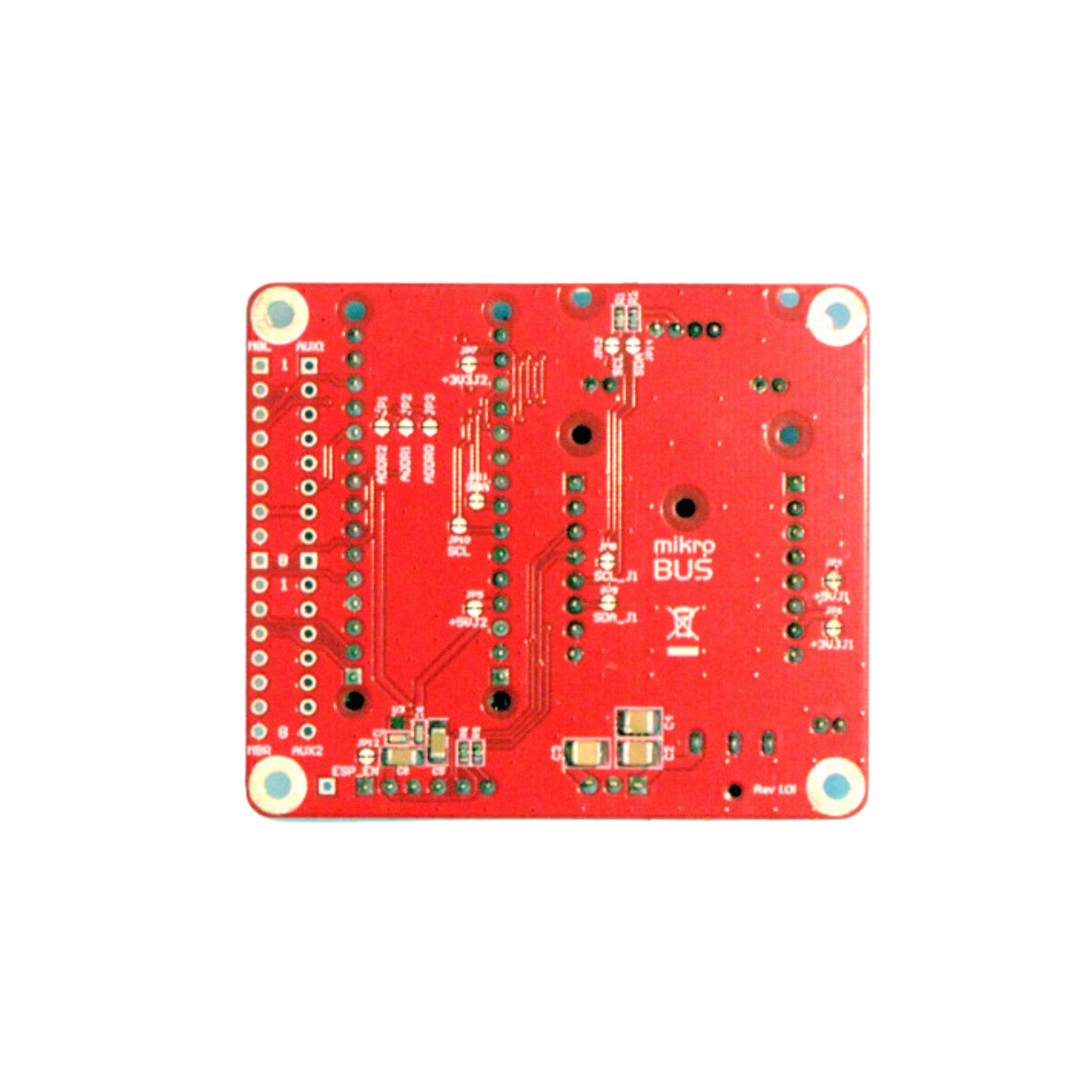

Arduino Nano Adaptor

The Arduino Nano Adapter module is designed to install Arduino Nano compatible modules or STM32 Nucleo-32 and mikroBUS^TM modules and provides a device based on this module with non-isolated 5VDC power, up to 1A.

The module has slot for installing one module with Arduino Nano form-factor one mikroBUS^TM module of the “S” or “M” format. These two slots organize a common bus.

Using the Nano slot allows you to design devices based on mikroBUS^TM modules, various Click boards^TM modules and SoM such as:

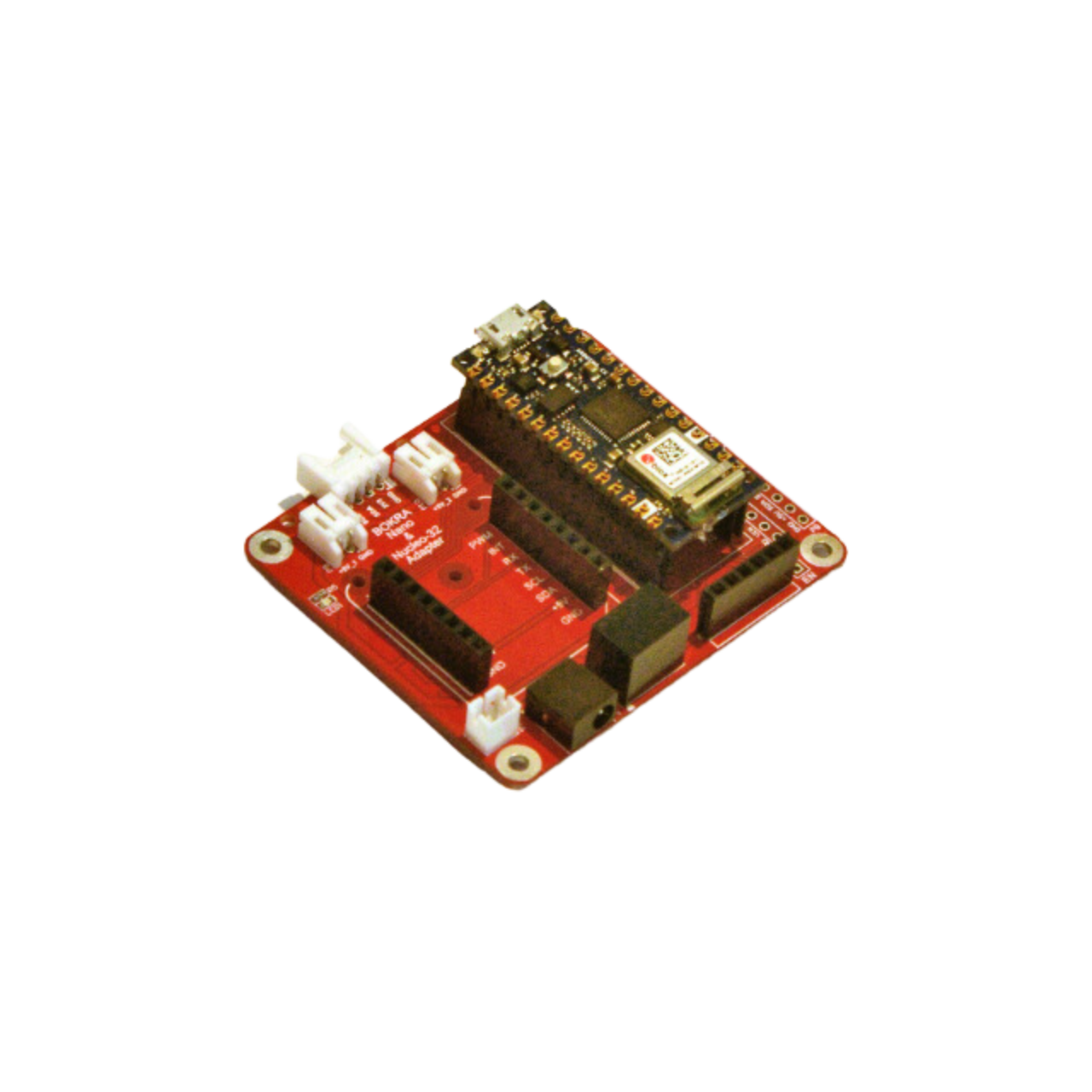

• Arduino Nano, Arduino Nano 33, Arduino Nano RP2040 Connect, Arduino Nano ESP32, Arduino Nano Matter from Arduino
• ESP32-S3-Nano from Waveshare

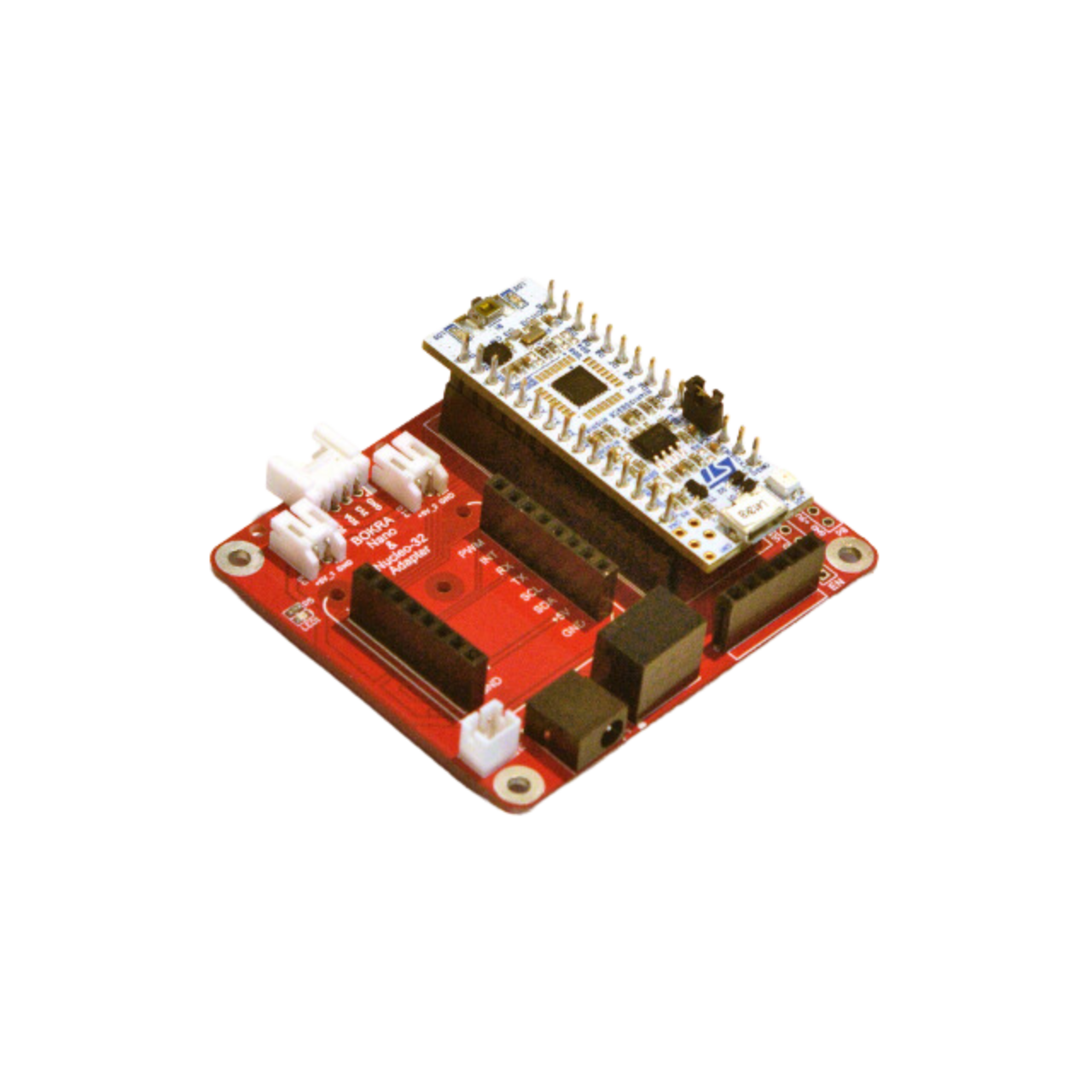

·         Nucleo-32 family - NUCLEO-F031K6, NUCLEO-F042K6, NUCLEO-F303K8, NUCLEO-G031K8, NUCLEO-G431KB, NUCLEO-L011K4, NUCLEO-L031K6, NUCLEO-L412KB, NUCLEO-L432KC, NUCLEO-8S207K8 - from STMicroelectronics

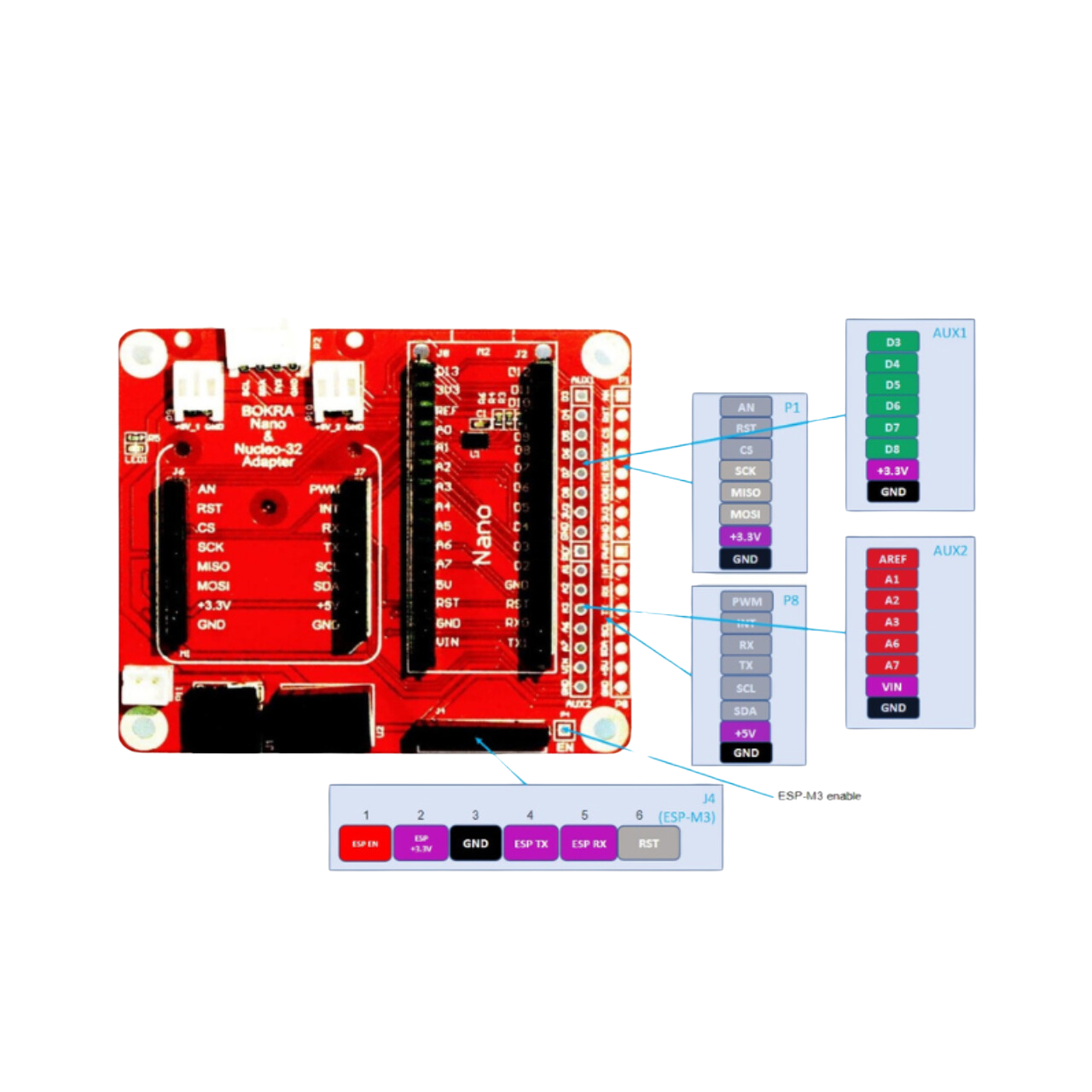

All mikroBUS ^TM signals are in the MBL (labeled P1) and MBR (labeled P8) connectors. Thus, through these connectors it is easy to connect another module (or even several) with mikroBUS^TM slots, increasing the number of slots on the common bus.

Almost all signals not used by mikroBUS^TM from the installed Arduino Nano or STM32 Nucleo-32 are output to the AUX1 and AUX2 connectors, which makes it possible to use almost all Arduino Nano or STM32 Nucleo-32 functions without changing the programs.

Third-party ESP-M3 modules can be installed in J4. Thus, a device based on Arduino Nano Adapter can be easily provided with Wi-Fi connection. The ESP-M3 is UART controlled from the 2nd mikroBUS^TM slot on the module. For stability, there is a DC-DC converter that provides 3.3VDC power for the ESP-M3, independent of the power supply on the mikroBUS^TM common bus.

The I²C interface is most often used in the design of devices and instruments based on this module. For this, the module has I²C connector through which you can connect external devices and sensors.

The module contains the LM75B chip - a temperature sensor connected via I²C. Temperature measurement accuracy: 2° C for the temperature range from -25° C to +100° C, 3° С for the temperature range from -55° C to +125° C. I²C address for LM75B – 1001111*.

The module power supply is non-isolated, in the range from 9VDC to 36VDC. The module converts the input power to the output, 5VDC. The maximum current is 1A. There are two connectors for distributing 5VDC to other modules and a connector for connecting the LED, indicating the presence of power. Since part of the mikroBUS^TM modules installed in the slots can produce 5VDC and 3.3VDC themselves, jumpers are provided on the module to disconnect the corresponding power contacts of the mikroBUS^TM slot from the common mikroBUS^TM bus.

The Arduino Nano Adapter module size 65 x 56 mm. The format of the module corresponds to the popular format of the Raspberry Pi 3A+, which greatly simplifies its use with the Raspberry Pi. The main areas of application of the module:

• Consumer electronics
• Air condition monitoring
• Distributed Data Acquisition Systems
• PLC
• Lighting
• Smart home
• Smart sensors
• Motor control
